Shop CHICAGO-LATROBE

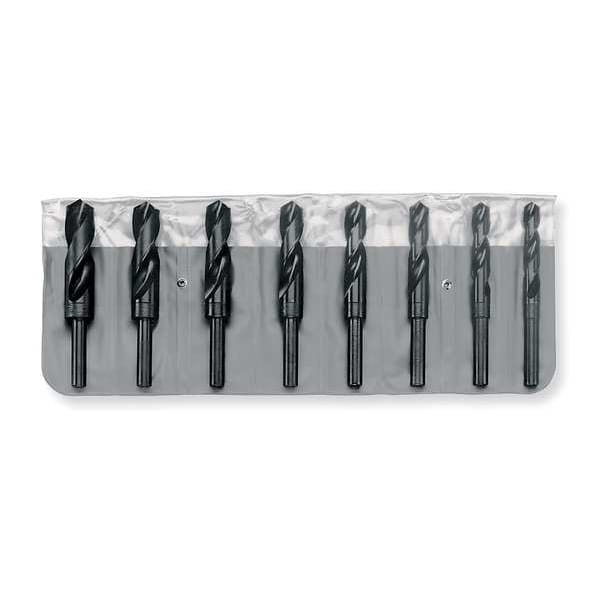

8PC 1/2 Reduced Shank Silver & Deming Drill Set Chicago-Latrobe 190F Steam Oxide HSS 9/16-1IN Pouch

  • Mfr # 69860

  • Zoro # G0895806

product price:  $332.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
8
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Plastic Pouch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
69860
Zoro #
G0895806
UPC #
662355698600
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
4xD
Drill Bit Dimension Type
Fractional Inch
Overall Length
6 in
Shank Dia.
1/2 in
Sizes Included
9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"
Drill Bit Size
9/16 in to 1 in by 16ths
Flute Length
3 1/8 in
Depth x Dia. Ratio
4xD
Largest Drill Bit Size
1 in
Smallest Drill Bit Size
9/16 in
Drill Bit Sizes Included
17/32 in, 9/16 in, 19/32 in, 5/8 in, 11/16 in, 3/4 in, 13/16 in, 7/8 in, 15/16 in, 1 in
Size Range
9/16"-1"
Wire Rope Length
6 in

Details

Item
Reduced Shank Drill Bit Set
Number of Pieces
8
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Plastic Pouch
Point Type
Split point
Shank Type
Round with Flats
Drill Bit Grouping
Drill Bit Set
List Number
190F
Application
For Alloy And Carbon Steel, Cast Iron And Wood
Standards
Not Rated
Flute Type
Spiral
Measurement System
Fractional Inch
Number of Drill Bits
8
Shank Type - Machining
Straight with Three Flats
Material Grade - Machining
General Purpose
Primary Material Application
All Materials
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Drill Bit Point Type
Split Point
Finish - Machining
Black Oxide
Drill Bit Case Type
Plastic Case
Drill Style
Silver & Deming Drill
Left/Right Hand
Right
Helix Angle - Minimum
30 Degrees
Number of Flutes
2
Helix Angle - Maximum
34 Degrees

Description

The CHICAGO-LATROBE 69860 is a reduced shank drill bit set intended for use with steel and wood as specified in the manufacturer’s materials list. This set features eight high-speed steel drill bits with split point tips and a right-hand cutting direction. The bits range in size from 9/16 inch to 1 inch, with a 1/2 inch shank diameter and an overall length of 6 inches. It includes a plastic pouch for storage and carries a fractional inch measurement system.

Key Features:

  • Drill bit sizes range from 9/16" to 1" in fractional increments
  • Constructed from high-speed steel with black oxide finish
  • Split point tips with 118-degree point angle to reduce bit walking during drilling
  • Two-flute spiral design with helix angles between 30° and 34°
  • Reduced shank style with straight round shank featuring three flats for chuck engagement
  • Overall length of 6 inches and flute length of 3-1/8 inches
  • Includes eight drill bits housed in a plastic pouch
  • Right-hand cutting direction with Silver & Deming drill style
