21PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP-TC TiCN HSS 1/16-3/8x1/64

  • Mfr # 43639

  • Zoro # G3713062

product price:
$
180.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
21
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
43639
Zoro #
G3713062
UPC #
662355436394
Country of Origin
United States

Dimensions

Drill Bit Size
1/16 in to 3/8 in by 64ths
Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8"
Depth:Dia. Ratio
4xD
Drill Bit Dimension Type
Fractional Inch
Shank Dia.
1/16 in
Depth x Dia. Ratio
4xD
Smallest Drill Bit Size
1/16 in
Drill Bit Sizes Included
1/16 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/64 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
Drill Length Class
Jobber-Length
Largest Drill Bit Size
3/8 in
Overall Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in
Wire Rope Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in
Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
21
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Drill Bit Grouping
Drill Bit Set
Point Type
P3 Split Point
List Number
150ASP-TC
Standards
NAS 907 Type B
Aircraft Drill
Yes
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Primary Material Application
Aluminum, Cast Iron, Steel
Drill Bit Point Type
Split Point
Number of Drill Bits
21
Finish - Machining
TiCN
Material Grade - Machining
Heavy Duty
Shank Type - Machining
Straight
Material - Machining
High Speed Steel
Drill Bit Case Type
Metal Index
Flute Type
Spiral
Primary Material Application ISO Code
K, N, P
Number of Flutes
2
Spiral Direction
Right Hand
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

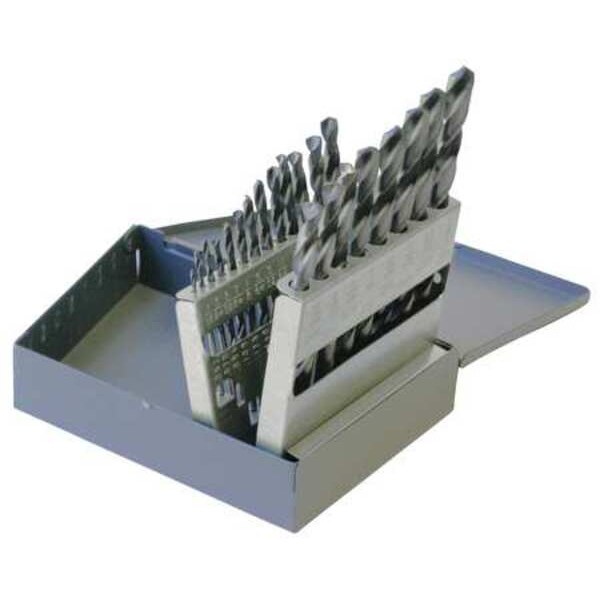

The CHICAGO-LATROBE 43639 is a jobber length drill bit set consisting of 21 high-speed steel bits with sizes ranging from 1/16 in to 3/8 in in fractional inch measurements. The bits feature 135-degree P3 split points and a TiCN finish. The bits feature a two-flute spiral design with right-hand cutting direction and come housed in a metal drill index case. Primary material application ISO codes: K (steel), N (cast iron), P (aluminum).

Key Features:

  • Number of drill bits: 21, sizes included from 1/16" to 3/8" by 64ths
  • Drill bit material: High-speed steel (HSS)
  • Point type: 135° P3 split point
  • Flute type: 2-flute spiral with 21° to 34° helix angle
  • Shank type: Straight, 1/16" diameter
  • Measurement system: Fractional inch
  • Drill length class: Jobber length
  • Spiral direction: Right hand cutting
  • Includes metal drill index case for bit storage
  • Primary material application ISO codes: K (steel), N (cast iron), P (aluminum)
  • Meets NAS 907 Type B standard
