26PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP-TN TiN HSS No 1-No 60
Mfr # 41802
Zoro # G3694241
Key Features
Specifications
Product Information
- MFR #
- 41802
- Zoro #
- G3694241
- UPC #
- 662355418024
- Country of Origin
- United States
Dimensions
- Depth:Dia. Ratio
- 4xD
- Sizes Included
- #60-#1
- Drill Bit Size
- #60 to #1
- Drill Bit Dimension Type
- Wire
- Depth x Dia. Ratio
- 4xD
- Shank Dia.
- 1/25 in
- Drill Length Class
- Jobber-Length
- Largest Drill Bit Size
- #1
- Drill Bit Sizes Included
- #1, #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9
- Smallest Drill Bit Size
- #60
- Overall Length
- 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
Description

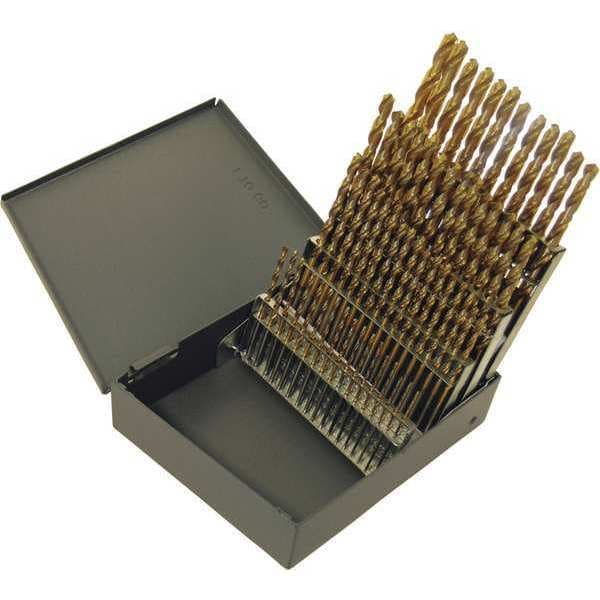

The CHICAGO-LATROBE 41802 is a jobber-length drill bit set containing 60 pieces ranging in size from #60 to #1. Made from heavy-duty high speed steel with a titanium nitride (TiN) finish, these drill bits are intended for drilling cast iron, stainless steel, and steel. Featuring a P3 split point with a 135-degree angle, the bits feature a P3 split point with a 135° angle to support cutting performance and help reduce point wandering during drilling. The set includes a metal drill index for organized storage and comes with straight shanks having a diameter of 1/25 inch. It meets NAS 907 Type B standards and is suitable for aircraft-grade applications.
Key Features:
- Material: High speed steel, heavy-duty grade with TiN coating
- Point Type: P3 split point with a 135° angle for improved penetration
- Size Range: Includes 60 drill bits from #60 (smallest) to #1 (largest)
- Length: Jobber-length drills with overall lengths ranging from 1 5/8 in to 3 7/8 in
- Flutes: 2 spiral flutes with right-hand cutting direction and helix angles between 21° and 34°
- Shank: Straight shank with 1/25 in diameter
- Measurement System: Wire gauge sizes
- Includes a metal drill index case for bit organization and storage
- Complies with NAS 907 Type B standards.
