15PC CLE-MAX Jobber Length Drill Set Cleveland 2002G Bright HSS RHS/RHC 1/16-1/2x1/32
Mfr # C72199
Zoro # G0969993
Key Features
Specifications
Product Information
- MFR #
- C72199
- Zoro #
- G0969993
- UPC #
- 697334721994
- Country of Origin
- United States
Dimensions
- Drill Bit Size
- 1/16 in to 1/2 in by 32nds
- Shank Dia.
- 1/16 in
- Sizes Included
- 1/16",3/32",1/8",5/32",3/16",7/32",1/4",9/32",5/16",11/32",3/8",13/32",7/16",15/32",1/2"
- Drill Bit Dimension Type
- Fractional Inch
- Depth x Dia. Ratio
- 4xD
- Size Range
- 1/16"-1/2"
- Depth:Dia. Ratio
- 4xD
- Largest Drill Bit Size
- 1/2 in
- Drill Length Class
- Jobber-Length
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Smallest Drill Bit Size
- 1/16 in
- Overall Length
- 1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
- Wire Rope Length
- 1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Description

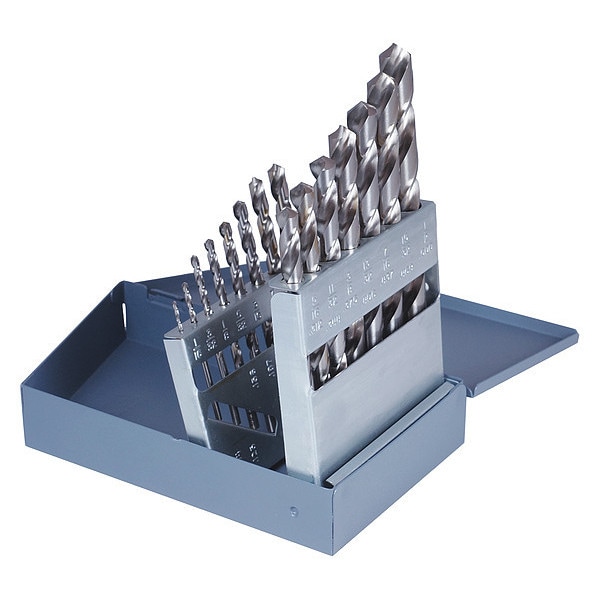

The CLEVELAND C72199 is a jobber-length drill bit set comprising 15 high speed steel (HSS) bits sized from 1/16 inch to 1/2 inch in fractional inch measurements. The set includes a metal drill index for organized storage of the bits with overall lengths are 1 7/8 inches to 6 inches depending on the bit size.
Intended for drilling applications in aluminum, cast iron, and steel; use within the material and operating conditions applicable to the selected bit size and machine setup. The set includes a metal drill index for organized storage of the bits, with overall lengths 1 7/8 inches to 6 inches depending on the bit size and machine setup. The bits comply with ASME B94.11M-1993 and DIN 338 dimensional/technical specifications (as applicable to the product).
Key Features:
- Drill bit sizes range from 1/16" to 1/2" in 32nds increments.
- Jobber-length style with overall lengths varying per size.
- High speed steel (HSS) construction.
- Two-flute spiral design; helix angle 21° to 34°.
- Radial (conventional) 118° point type.
- Straight shank diameter: 1/16 in.
- Right-hand spiral cutting direction (RH).
- Includes a metal index case for bit storage.
- Complies with ASME B94.11M-1993 and DIN 338 standards.
- Not rated for aircraft or aerospace use.
