26PC A-Z HSS 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150-TN TiN

  • Mfr # 69883

  • Zoro # G3664001

product price:
$
232.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
26
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
69883
Zoro #
G3664001
UPC #
662355698839
Country of Origin
United States

Dimensions

Drill Bit Size
A to Z
Depth:Dia. Ratio
4xD
Drill Bit Dimension Type
Letter
Sizes Included
A-Z
Depth x Dia. Ratio
4xD
Shank Dia.
117/500 in
Drill Length Class
Jobber-Length
Smallest Drill Bit Size
A
Largest Drill Bit Size
Z
Drill Bit Sizes Included
A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z
Overall Length
3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in
Wire Rope Length
3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in
Length
3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
26
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
List Number
150-TN
Drill Bit Grouping
Drill Bit Set
Point Type
Conventional Point
Standards
ASME B94.11M-1993
Aircraft Drill
No
Finish - Machining
TiN
Material Grade - Machining
General Purpose
Measurement System
Letter
Number of Drill Bits
26
Coolant Fed
Non-Coolant Through
Primary Material Application
Aluminum, Cast Iron, Steel
Drill Bit Point Type
Conventional Point
Shank Type - Machining
Straight
Material - Machining
High Speed Steel
Flute Type
Spiral
Drill Bit Case Type
Metal Index
Number of Flutes
2
Primary Material Application ISO Code
K, N, P
Spiral Direction
Right Hand
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

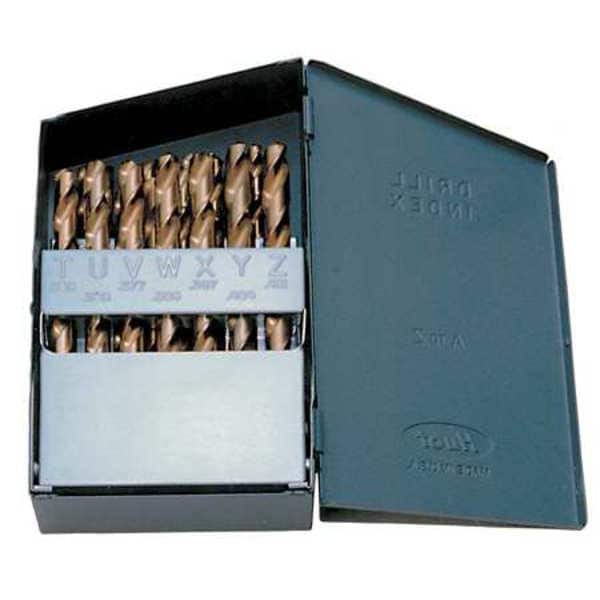

The CHICAGO-LATROBE 69883 is a jobber-length drill bit set that includes 26 drill bits sized A through Z. Each drill bit features a conventional 118-degree point and two right-hand spiral flutes, providing effective cutting and chip removal. The set is supplied in a metal index case for organized storage and easy access.

Key Features:

  • Drill bit sizes range from A to Z, covering 26 sizes in total.
  • Overall lengths vary from 3 7/8 inches to 5 1/4 inches, consistent with jobber-length classification.
  • Made from [high-speed steel]; general-purpose machining grade.
  • Features a conventional 118-degree point angle and two-flute spiral design with helix angles between 21° and 34°.
  • Straight shank with a diameter of 117/500 inches.
  • Has a titanium nitride (TiN) finish.
  • Primary applications include materials coded ISO K, N, and P (aluminum, cast iron, steel).
  • Non-coolant fed; right-hand cutting direction.
