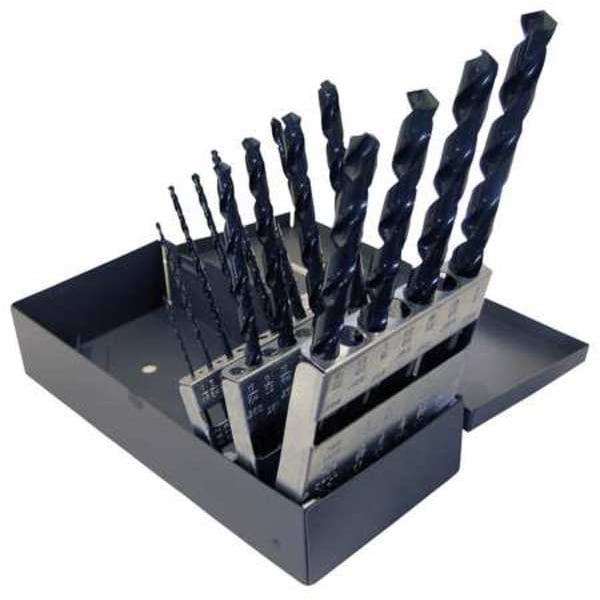

29PC 118 Degree General Purpose Taper Length Drill Set Chicago-Latrobe 120 Steam Oxide HSS 1/16-1/2x1/64
- Mfr # 69864
- Zoro # G3713412
Key Features
Specifications
Product Information
- MFR #
- 69864
- Zoro #
- G3713412
- UPC #
- 662355698648
- Country of Origin
- United States
Dimensions
- Drill Bit Dimension Type
- Fractional Inch
- Depth x Dia. Ratio
- 4xD
- Depth:Dia. Ratio
- 4xD
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
- Drill Diameter Tolerance
- +0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in
- Drill Length Class
- Taper-Length
- Maximum Drilling Depth
- Variable
- Drill Point Length
- 0.0000 in
- Smallest Drill Bit Size
- 1/16 in
- Largest Drill Bit Size
- 1/2 in
Description
The CHICAGO-LATROBE 69864 is a taper-length drill bit set consisting of 29 pieces made from high speed steel with a general purpose grade. The set includes fractional inch sizes ranging from 1/16 inch to 1/2 inch in 64ths, rated for a drilling depth up to the set’s specified taper-length depth for each bit size. These drill bits are intended for use on materials classified as ISO K and P (e.g., cast iron and steel), as specified for this set. The bits have a right-hand cutting direction and are finished with black oxide coating. They have a right-hand cutting direction and are finished with black oxide coating, with a chip-flow feature achieved via two flutes with a 28° helix angle.
Key Features:
- Number of drill bits: 29 pieces in sizes from 1/16" up to 1/2".
- Drill bit type: Taper-length.
- Point type: 118° conventional, general purpose.
- Flute count and type: 2 spiral flutes with 28° helix angle.
- Suitable for materials classified under ISO codes K and P (cast iron, steel), as specified for this set.
- Cutting direction: Right hand.
- Finish: Black oxide coating.
