33PC 1/2 Reduced Shank Silver & Deming Drill Set Chicago-Latrobe 190 Steam Oxide HSS 1/2-1IN

  • Mfr # 69858
  • Zoro # G3622473
product price:
$
1,154.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
33
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
69858
Zoro #
G3622473
UPC #
662355698587
Country of Origin
United States

Dimensions

Shank Dia.
1/2 in
Depth:Dia. Ratio
4xD
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/2 in to 1 in by 64ths
Sizes Included
1/2", 33/64", 17/32", 35/64", 9/16", 37/64", 19/32", 39/64", 5/8", 41/64", 21/32", 43/64", 11/16", 45/64", 23/32", 47/64", 3/4", 49/64", 25/32", 51/64", 13/16", 53/64", 27/32", 55/64", 7/8", 57/64", 29/32", 59/64", 15/16", 61/64", 31/32", 63/64", 1"
Flute Length
3 1/8 in
Depth x Dia. Ratio
4xD
Overall Length
6 in
Smallest Drill Bit Size
1/2 in
Largest Drill Bit Size
1 in
Drill Bit Sizes Included
1/2 in, 33/64 in, 17/32 in, 35/64 in, 9/16 in, 37/64 in, 19/32 in, 39/64 in, 5/8 in, 41/64 in, 21/32 in, 43/64 in, 11/16 in, 45/64 in, 23/32 in, 47/64 in, 3/4 in, 49/64 in, 25/32 in, 51/64 in, 13/16 in, 53/64 in, 27/32 in, 55/64 in, 7/8 in, 57/64 in, 29/32 in, 59/64 in, 15/16 in, 61/64 in, 31/32 in, 63/64 in, 1 in
Wire Rope Length
6 in
Length
6 in

Details

Item
Reduced Shank Drill Bit Set
Number of Pieces
33
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Index
Drill Bit Grouping
Drill Bit Set
List Number
190
Number of Flutes
2
Flute Type
Spiral
Drill Bit Point Type
Conventional Point
Material - Machining
High Speed Steel
Shank Type - Machining
Straight
Finish - Machining
Black Oxide
Material Grade - Machining
General Purpose
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Number of Drill Bits
33
Primary Material Application
All Materials
Standards
Not Rated
Drill Bit Case Type
Metal Index
Point Type
General Purpose
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
30 Degrees

Description

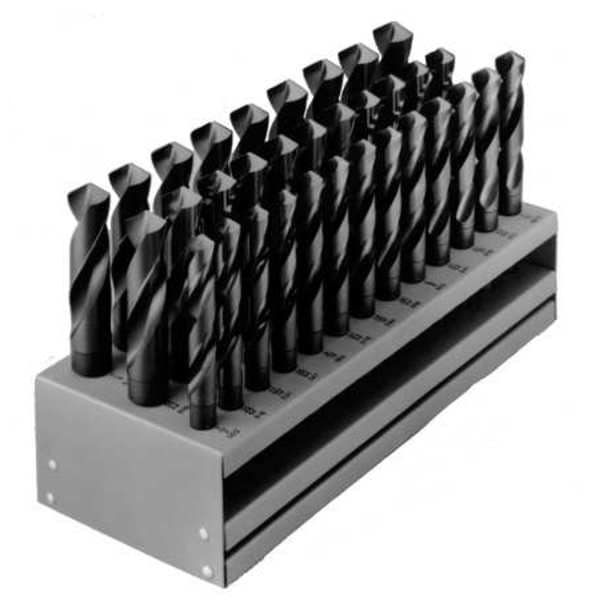

The CHICAGO-LATROBE 69858 Reduced Shank Drill Bit Set includes 33 high speed steel drill bits with general purpose 118-degree conventional points. Sizes: fractional inch 1/2 in to 1 in, in 1/64 in increments. These bits feature a straight reduced 1/2-inch shank. Each bit measures 6 inches in overall length with a flute length of 3 1/8 inches and a spiral flute type with a helix angle between 30 and 34 degrees. The set is supplied in a metal index case and has a black oxide finish.

Key Features:

  • 33-piece set with drill bit sizes from 1/2" to 1" by 1/64" increments
  • High speed steel (HSS) construction
  • Reduced straight shank diameter: 1/2 in
  • 2-flute spiral design with 118° conventional point angle
  • Overall length of 6" with a flute length of 3 1/8"
  • Black oxide finish
  • Supplied in a metal index case for bit organization
  • Non-coolant through design (requires external coolant as applicable for the drilling application)
  • Fractional inch measurement system
