29PC 135 Degree Heavy-Duty Jobber Length Drill Set Chicago-Latrobe 150ASP-TC TiCN HSS 1/16-1/2x1/64

  • Mfr # 43640

  • Zoro # G3653106

product price:  $313.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
43640
Zoro #
G3653106
UPC #
662355436400
Country of Origin
United States

Dimensions

Drill Bit Dimension Type
Fractional Inch
Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
Shank Dia.
1/6 in
Depth:Dia. Ratio
4xD
Drill Bit Size
1/16 in to 1/2 in by 64ths
Depth x Dia. Ratio
4xD
Largest Drill Bit Size
1/2 in
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Smallest Drill Bit Size
1/16 in
Drill Length Class
Jobber-Length
Overall Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Drill Bit Grouping
Drill Bit Set
List Number
150ASP-TC
Point Type
P3 Split Point
Standards
NAS 907 Type B
Measurement System
Fractional Inch
Material - Machining
High Speed Steel
Shank Type - Machining
Straight
Primary Material Application
Aluminum, Cast Iron, Steel
Number of Drill Bits
29
Material Grade - Machining
Heavy Duty
Finish - Machining
TiCN
Coolant Fed
Non-Coolant Through
Drill Bit Point Type
Split Point
Aircraft Drill
Yes
Drill Bit Case Type
Metal Index
Flute Type
Spiral
Primary Material Application ISO Code
K, N, P
Spiral Direction
Right Hand
Number of Flutes
2
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

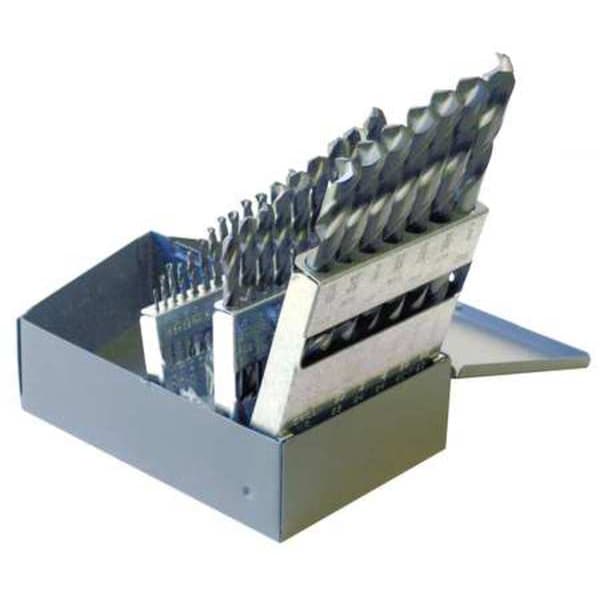

The CHICAGO-LATROBE 43640 Jobber Length Drill Bit Set includes 29 fractional inch drill bits ranging in size from 1/16" to 1/2". Made from heavy duty high speed steel with a TiCN finish, these drill bits are designed for machining materials such as aluminum, cast iron, and steel. Each drill bit features a P3 split point tip with a 135-degree point angle and right-hand spiral flutes, suitable for a variety of drilling tasks. The set is supplied in a metal index case and meets NAS 907 Type B standards.

Key Features:

  • Drill bit sizes: 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2".
  • Jobber length drill bits with overall lengths between 1 7/8" and 6".
  • Material: Heavy duty high speed steel with TiCN finish for machining aluminum, cast iron, and steel.
  • Point type: P3 split point with a 135° angle for efficient cutting.
  • Flutes: Two right-hand spiral flutes with helix angles ranging from 21° to 34°.
  • Shank type: Straight shank with 1/6" diameter.
  • Includes metal drill index case for organized storage.
  • Meets NAS 907 Type B aerospace standard.
