  9. 1" D-Handle Air Impact Wrench 1770 ft.-lb.

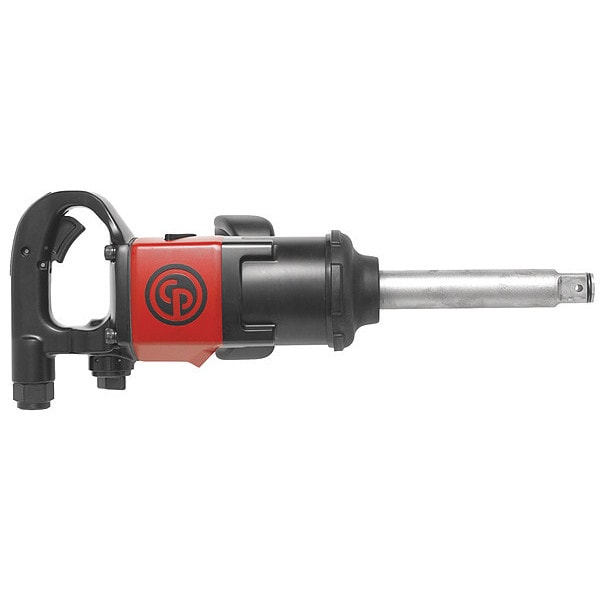

Chicago Pneumatic 1" D-Handle Air Impact Wrench 1770 ft.-lb. CP7783-6 - main

1" D-Handle Air Impact Wrench 1770 ft.-lb.

  • Mfr # CP7783-6

  • Zoro # G1862907

product price: $959.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1"
Free Speed
6,200 RPM
Air Inlet
1/2 in NPT
Handle Type
D-Handle
Drive Size - Air Tools
1" Square
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP7783-6
Zoro #
G1862907
UPC #
015451767440
Country of Origin
Taiwan, Province of China

Dimensions

Square Drive Size
1"
Drive Size - Air Tools
1" Square
Min. Hose Size
3/4 in
Overall Length
19 5/8 in
Air Inlet Size - Air Tools
3/8" NPT
Anvil Length - Air Impacts
7.250"
Drive Size
1 in Square
Extended Anvil Length
6 in

Details

Item
Impact Wrench
Free Speed
6,200 RPM
Air Inlet
1/2 in NPT
Handle Type
D-Handle
Max. Bolt Capacity
1 1/4 in
Body Style - Air Tools
D-Handle
CFM @ Full Load
40.5
Retainer Type - Air Impacts
Ring
Includes
Hex Key, Rubber Bumper
Required Pressure
90 psi
Features
Four Positions For D-Handle Placement To Provide Ultimate Operator Comfort, Rubber Bumper Protecting Both Applications & Tool (Included), Shock Absorbing
Torque Range
413 to 1253 ft.-lb.
Anvil
6" Extended
Average CFM @ 15 Second Run Time
10.00
Tool Weight
20.9 lb
Style
D-Handle
Handle Material
Aluminum
Item - Air Impact Wrenches
Air Impact Wrench
Retainer Type
Friction Ring, Through Hole
Duty
General
Housing Material
Aluminum
Anvil Type - Air Impacts
6" Extended
Max. Torque
1770 ft.-lb.
Duty Cycle - Air Tools
General Duty
Impacts per Minute
500
Drive Type
Extended
Impact Sound Level
113 dB
Number of Speed Settings
3
Breakaway Torque
1,770 ft-lb
Vibration Level
15.1 m/sq sec
Fastening Torque
1,253 ft-lb
Tool Style
Compact
Exhaust Location
Bottom
Power Source
Air Powered
Standards
EN ISO 11148-6:2013, ISO-28927-2
Air Pressure
90 psi
Max. Air Pressure
90 psi
Clutch Style
Rocking Dog
Impact Rated
Yes
Power to Weight Ratio
84.7 ft-lb/lb
Air Consumption
41 cfm
Duty Rating
General Duty
Min. Air Pressure
90 psi
Built-In Light
No

Description

Air Impact Wrench, Power Source Air-Powered, Air Consumption 41 cfm, Air Inlet 1/2 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/4 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,770 ft-lb, Fastening Torque 1,253 ft-lb, Free Speed 6,200 RPM, Impact Rated Yes, Impact Sound Level 113 dB, Impacts per Minute 500, Number of Speed Settings 3, Power to Weight Ratio 84.7 ft-lb/lb, Max. Bolt Capacity 1 1/4 in, Drive Size 1 in
