  9. 1" D-Handle Air Impact Wrench 2800 ft.-lb.
Shop All Air Impact Wrenches
Chicago Pneumatic

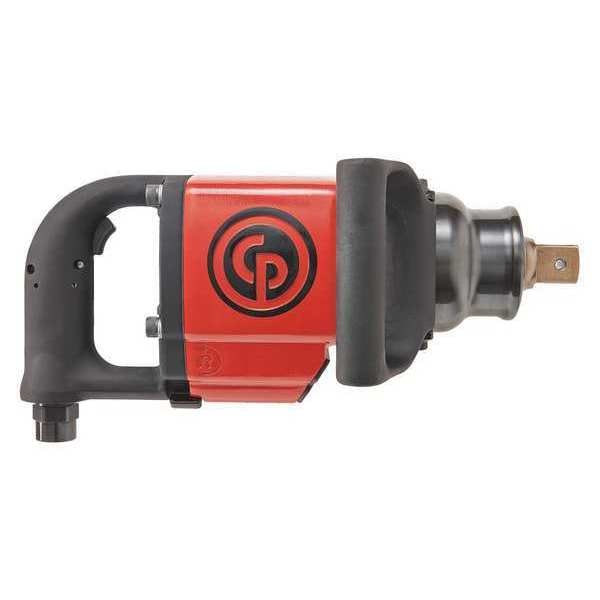

1" D-Handle Air Impact Wrench 2800 ft.-lb.

Hover or click to zoom Tap to zoom
Key Features
  • Air Inlet: 1/2 in NPT
  • Blows per Minute: 1020
  • Duty: Industrial
  • Free Speed: 3,500 RPM
  • Handle Type: D-Handle
  • Housing Material: Steel
  • Max. Bolt Capacity: 1 3/8 in
  • Max. Torque: 2800 ft.-lb.
See full product details
$4,052.32
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Chicago Pneumatic #CP0611-D28H Specifications

  • Air Inlet: 1/2 in NPT
  • Blows per Minute: 1020
  • Duty: Industrial
  • Free Speed: 3,500 RPM
  • Handle Type: D-Handle
  • Housing Material: Steel
  • Max. Bolt Capacity: 1 3/8 in
  • Max. Torque: 2800 ft.-lb.
  • Min. Hose Size: 1 in
  • Square Drive Size: 1"
  • Torque Range: 900 to 1800 ft.-lb.
  • CFM @ Full Load: 68.0
  • Anvil Length - Air Impacts: 1.250"
  • Average CFM @ 15 Second Run Time: 17.00
  • Blows per Minute - Air Tools: 1020
  • Retainer Type: Through Hole
  • Drive Size - Air Tools: 1" Square
  • Item: Impact Wrench
  • Body Style - Air Tools: D-Handle
  • Retainer Type - Air Impacts: Ring
  • Duty Cycle - Air Tools: Industrial Duty
  • Style: D-Handle
  • Anvil Type - Air Impacts: Standard
  • Item - Air Impact Wrenches: Air Impact Wrench
  • Anvil: Standard
  • Overall Length: 14 1/8 in
  • Handle Material: Aluminum
  • Required Pressure: 90 psi
  • Tool Weight: 22.9 lb
  • Air Inlet Size - Air Tools: 1/2" NPT
  • Features: 360 Degrees Adjustable D-Type Side Handle, Compact 3-Part Construction & Easy Maintenance, Full Teasing (Inside) Trigger With Durable Reverse, Hole Type Socket Retainer With O-Ring, Operator Comfort And Control Thanks To Perfect Ergonomic Design Even At Very Hig
  • Standards: EN ISO 11148-6:2013, ISO-28927-2
  • Duty Rating: Industrial Duty
  • Fastening Torque: 1,800 ft-lb
  • Breakaway Torque: 2,800 ft-lb
  • Drive Type: Standard
  • Impact Sound Level: 110 dB
  • Tool Style: Compact
  • Drive Size: 1 in Square
  • Max. Air Pressure: 90 psi
  • Power to Weight Ratio: 122.3 ft-lb/lb
  • Exhaust Location: Bottom
  • Impacts per Minute: 1,020
  • Power Source: Air Powered
  • Vibration Level: 18.0 m/sq sec
  • Built-In Light: No
  • Air Consumption: 68 cfm
  • Impact Rated: Yes
  • Air Pressure: 90 psi
  • Clutch Style: 2 Jaw Clutch
  • Min. Air Pressure: 90 psi
  • Number of Speed Settings: 3
  • Country of Origin (subject to change): Japan

Description

Impact Wrench, Power Source Air Powered, Air Consumption 68 cfm, Air Inlet 1/2 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 2,800 ft-lb, Fastening Torque 1,800 ft-lb, Free Speed 3,500 RPM, Impact Rated Yes, Impact Sound Level 110 dB, Impacts per Minute 1,020, Number of Speed Settings 3, Power to Weight Ratio 122.3 ft-lb/lb, Max. Bolt Capacity 1 3/8 in
