  9. 1/2" 70 ft.-lb. Air Ratchet Wrench
Shop All Air Ratchet Wrenches
Chicago Pneumatic

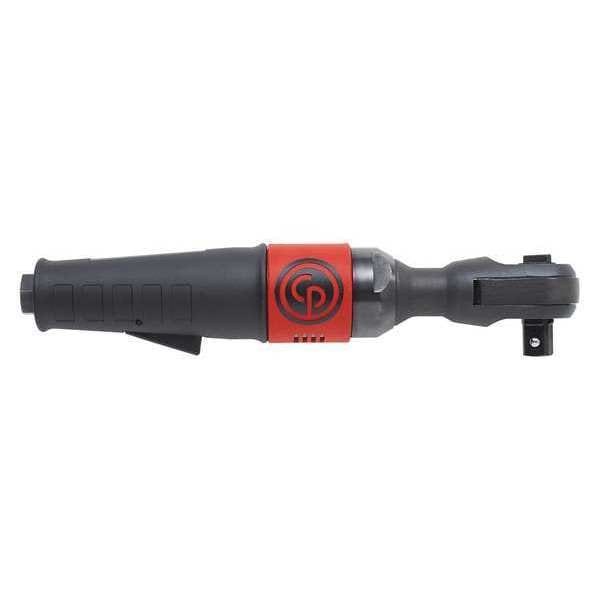

1/2" 70 ft.-lb. Air Ratchet Wrench

product price: $202.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Size - Air Tools 1/2" Square
  • Max. Torque 70 ft.-lb.
  • Torque Range 10 to 55 ft.-lb.
  • Duty Cycle - Air Tools Industrial Duty
  • Free Speed 225 RPM
See all product information

Product Information

Dimensions

Drive Size - Air Tools 1/2" Square
Length 9-13/16"
Head Width 1-1/8"
Air Inlet Size - Air Tools 1/4" NPT
Square Drive Size 1/2"
Head Height 1-1/4"
Overall Length 10 7/8 in
Drive Size 1/2 in Square
Min. Hose Size 3/8 in

Details

Item - Air Ratchets Air Ratchet Wrench
Max. Torque 70 ft.-lb.
Torque Range 10 to 55 ft.-lb.
Duty Cycle - Air Tools Industrial Duty
Free Speed 225 RPM
Throttle Trigger
Duty Heavy
Variable Speed No
Reversing No
Required Pressure 90 PSI
Exhaust Adjustable
Min. Hose 3/8"
Retainer Type Ball Detent
Housing Material Composite
Average CFM @ 15 Second Run Time 2.75
Tool Weight 2.7 lb
Air Inlet 1/4 in NPT
Handle Material Composite
CFM @ Full Load 11.0
Item Ratchet
Air Pressure 90 psi
Side to Center 3/4 in
Features Ergonomic Composite Grip
Exhaust Location Side
Power Source Air Powered
Fastening Torque 70 ft-lb
Duty Rating Industrial Duty
Air Consumption 4 cfm
Max. Air Pressure 90 psi
Min. Air Pressure 90 psi

Description

Ratchet, Air Powered, Air Consumption 4 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Side, Drive Size 1/2 in Square, Retainer Type Ball Detent, Free Speed 225 RPM, Fastening Torque 70 ft-lb, Duty Rating Industrial Duty, Tool Brand Chicago Pneumatic, Overall Length 10 7/8 in, Side to Center 3/4 in, Tool Weight 2.7 lb
