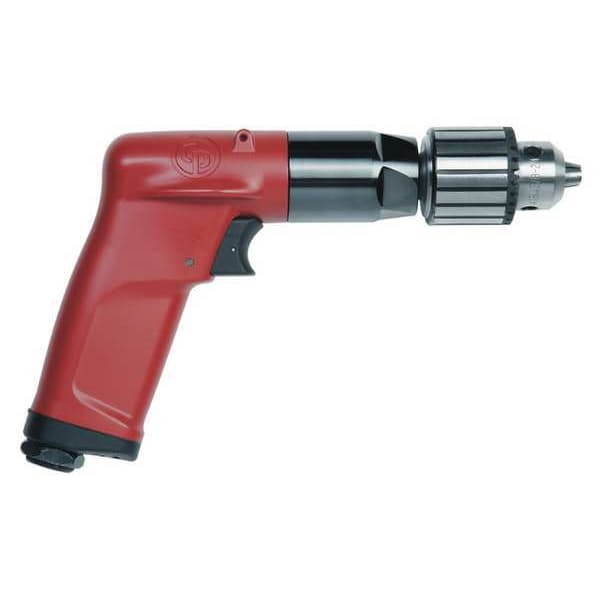

Chicago Pneumatic 1/4" Pistol Air Drill 3300 rpm CP1014P33 - main

1/4" Pistol Air Drill 3300 rpm

  • Mfr # CP1014P33

  • Zoro # G6718652

product price: $439.99
/ea
Free Shipping & Returns

Key Features

HP
0.50
HP - Air Tools
0.50
Chuck Size - Air Drills
1/4 in
CFM @ Full Load
19.0
Air Inlet
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP1014P33
Zoro #
G6718652
UPC #
015451695354
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size - Air Drills
1/4 in
Min. Hose Size
3/8 in
Overall Length
6 3/4 in
Air Inlet Size - Air Tools
1/4 in NPT
Chuck Size
1/4 in
Overall Width
3 in
Overall Height
6 7/8 in
Spindle Thread Size
3/8"-24

Details

Item
Drill
HP
0.50
HP - Air Tools
0.50
CFM @ Full Load
19.0
Air Inlet
1/4 in
Drill Chuck Type - Air Drills
Keyed
Reversing
No
Required Pressure
90 psi
Free Speed
2,400 RPM
Duty Cycle - Air Tools
Industrial Duty
Torque
0.65 to 2.60 ft-lb
Drill Chuck Type
Keyed
Average CFM @ 15 Second Run Time
4.70
Bearings
Ball Bearing
Includes
Chuck Key
Variable Speed
Yes
Style
Pistol
Duty
Industrial
Body Style - Air Tools
Pistol
Item - Air Drills
Air Drill
Throttle Type
Trigger
Gear Train
Planetary
Housing Material
Aluminum
Tool Weight
1.2 lb
Handle Material
Aluminum
Handle Type
Pistol Grip
Application
Drilling, Reaming Holes
Air Consumption
19 cfm
Exhaust Location
Handle
Drilling Capacity in Cast Iron
1/8 in
Bearing Design
Ball
Min. Torque
0 ft-lb
Noise Level
78 dB
Torque Range
0 ft-lb to 2.6 ft-lb
Drilling Capacity in Wood
1/4 in
Duty Rating
Industrial Duty
Reversible
No
Chuck Material
Metal
Power Source
Air-Powered
Drilling Capacity in Aluminum
1/4 in
Max. Torque
2.6 ft-lb
Drilling Capacity in Steel
1/8 in
Vibration Level
2.5 m/sq sec
Horsepower
0.5 hp
Air Pressure
90 psi

Description

Air-Powered Drill, HP - Air Tools 0.50, Chuck Size - Air Drills 1/4 in, Drill Chuck Type - Air Drills Keyed, Reversing No, Pistol Body Style - Air Tools, Free Speed 2,400 RPM, Industrial Duty Duty Cycle - Air Tools, Torque 0.65 to 2.60 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 4.70, CFM @ Full Load 19.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Aluminum, Variable Speed Yes, Throttle Type Trigger, Bearings Ball Bearing
