Shop CHICAGO PNEUMATIC

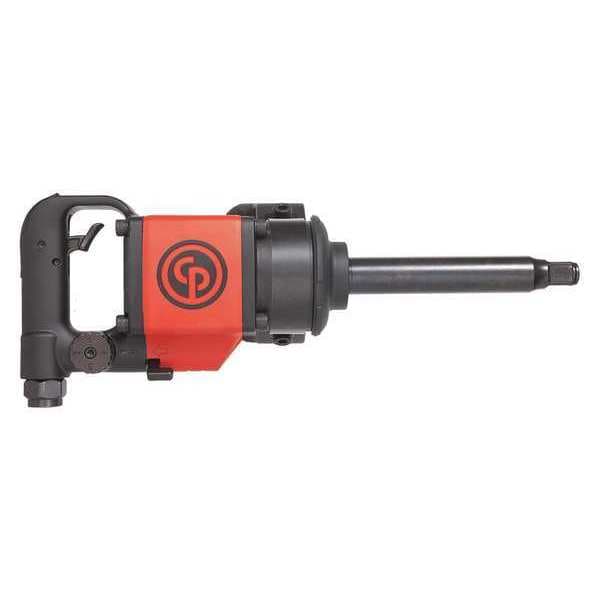

3/4" D-Handle Air Impact Wrench 1300 ft.-lb.

  • Mfr # CP7763D-6

  • Zoro # G3729577

product price:  $666.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
3/4"
Free Speed
6,600 RPM
Air Inlet
1/2 in NPT
Handle Type
D-Handle
Air Inlet Size - Air Tools
3/8" NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CP7763D-6
Zoro #
G3729577
UPC #
015451748449
Country of Origin
Taiwan, Province of China

Dimensions

Square Drive Size
3/4"
Air Inlet Size - Air Tools
3/8" NPT
Anvil Length - Air Impacts
7.000"
Overall Length
17 1/2 in
Drive Size - Air Tools
3/4" Square
Min. Hose Size
3/8 in
Drive Size
3/4 in
Extended Anvil Length
6 in
Hose Size - Minimum
3/8 in
Air Inlet Connection Size
1/2 in

Details

Item
Air Impact Wrench
Free Speed
6,600 RPM
Air Inlet
1/2 in NPT
Handle Type
D-Handle
Duty Cycle - Air Tools
Industrial Duty
CFM @ Full Load
41.0
Style
D-Handle
Duty
Industrial
Retainer Type
Friction Ring
Body Style - Air Tools
D-Handle
Tool Weight
16.1 lb
Average CFM @ 15 Second Run Time
10.50
Max. Bolt Capacity
1 in
Max. Torque
1300 ft.-lb.
Housing Material
Aluminum
Blows per Minute
730
Required Pressure
90 psi
Anvil
6" Extended
Torque Range
250 to 1070 ft.-lb.
Item - Air Impact Wrenches
Air Impact Wrench
Retainer Type - Air Impacts
Ring
Handle Material
Composite
Anvil Type - Air Impacts
6" Extended
Features
Composite Cover On The Clutch Housing, Intuitive Forward / Reverse Lever & Power Regulator On Both Sides, Steel Motor
Air Consumption
41 cfm
Power to Weight Ratio
80.7 ft-lb/lb
Duty Rating
Industrial Duty
Impact Sound Level
109 dB
Number of Speed Settings
4
Power Source
Air-Powered
Vibration Level
12 m/sq sec
Drive Type
Extended
Clutch Style
Twin Hammer
Breakaway Torque
1,300 ft-lb
Fastening Torque
1,070 ft-lb
Standards
EN ISO 11148-6:2013, ISO-28927-2
Tool Style
Compact
Impact Rated
Yes
Air Pressure
90 psi
Min. Air Pressure
90 psi
Built-In Light
No
Impacts per Minute
1,200
Max. Air Pressure
90 psi
Exhaust Location
Bottom
Air Pressure - Maximum
90 psi
Air Pressure - Minimum
90 psi
Bolt Capacity - Maximum
1 in
Air Inlet Type
NPT
Drive Shape
Square
Frequency of Use
Maintenance to Light Production
Tool Life
Long Lasting

Description

Impact Wrench, Power Source Air Powered, Air Consumption 41 cfm, Air Inlet 1/2 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 1,300 ft-lb, Fastening Torque 1,070 ft-lb, Free Speed 6,600 RPM, Impact Rated Yes, Impact Sound Level 109 dB, Impacts per Minute 1,200, Number of Speed Settings 4, Power to Weight Ratio 80.7 ft-lb/lb, Max. Bolt Capacity 1 in
