  9. 3/4" Pistol Grip Air Impact Wrench 1200 ft.-lb.

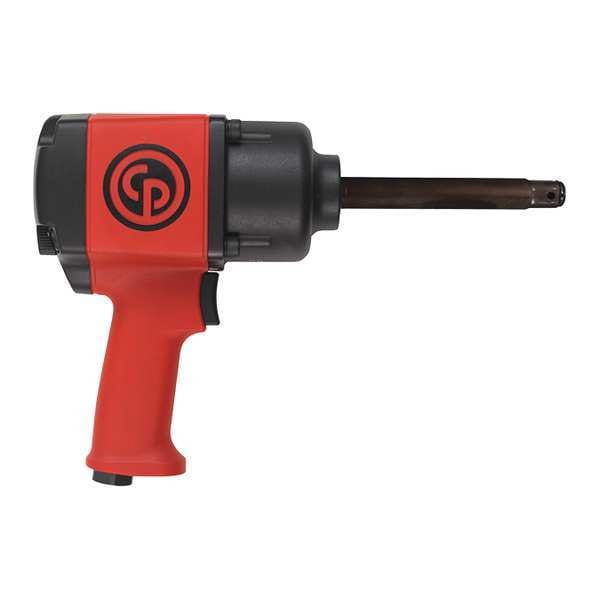

Chicago Pneumatic 3/4" Pistol Grip Air Impact Wrench 1200 ft.-lb. CP7763-6 - main

3/4" Pistol Grip Air Impact Wrench 1200 ft.-lb.

  • Mfr # CP7763-6

  • Zoro # G3911476

product price: $639.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
3/4"
Free Speed
6,300 RPM
Air Inlet
3/8 in NPT
Handle Type
Pistol Grip
Blows per Minute - Air Tools
900
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP7763-6
Zoro #
G3911476
UPC #
015451566166
Country of Origin
Taiwan, Province of China

Dimensions

Square Drive Size
3/4"
Anvil Length - Air Impacts
7.000"
Overall Length
15 in
Air Inlet Size - Air Tools
3/8" NPT
Min. Hose Size
1/2 in
Drive Size - Air Tools
3/4" Square
Drive Size
3/4 in Square
Extended Anvil Length
6 in

Details

Item
Impact Wrench
Free Speed
6,300 RPM
Air Inlet
3/8 in NPT
Handle Type
Pistol Grip
Blows per Minute - Air Tools
900
Handle Material
Aluminum
Item - Air Impact Wrenches
Air Impact Wrench
Retainer Type
Friction Ring, Through Hole
Tool Weight
13.9 lb
Duty
General
Anvil
6" Extended
Average CFM @ 15 Second Run Time
7.50
Blows per Minute
900
Style
Pistol Grip
Features
Combined Power Regulator With Forward/Reverse, Operator Comfort, Powerful Motor And Durable Clutch
Duty Cycle - Air Tools
General Duty
Retainer Type - Air Impacts
Ring
Max. Bolt Capacity
1 1/8 in
Body Style - Air Tools
Pistol
Torque Range
100 to 950 ft.-lb.
CFM @ Full Load
30.0
Housing Material
Aluminum
Required Pressure
90 psi
Anvil Type - Air Impacts
6" Extended
Max. Torque
1200 ft.-lb.
Standards
EN ISO 11148-6:2013, ISO-28927-2
Duty Rating
General Duty
Air Pressure
90 psi
Tool Style
Compact
Exhaust Location
Bottom
Power to Weight Ratio
86.6 ft-lb/lb
Power Source
Air Powered
Vibration Level
10.4 m/sq sec
Built-In Light
No
Breakaway Torque
1,200 ft-lb
Air Consumption
30 cfm
Impact Rated
Yes
Impact Sound Level
107 dB
Max. Air Pressure
90 psi
Clutch Style
Twin Hammer
Min. Air Pressure
90 psi
Drive Type
Extended
Impacts per Minute
900
Number of Speed Settings
3
Fastening Torque
950 ft-lb

Description

Impact Wrench, Power Source Air Powered, Air Consumption 30 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,200 ft-lb, Fastening Torque 950 ft-lb, Free Speed 6,300 RPM, Impact Rated Yes, Impact Sound Level 107 dB, Impacts per Minute 900, Number of Speed Settings 3, Power to Weight Ratio 86.6 ft-lb/lb, Max. Bolt Capacity 1 1/8 in
