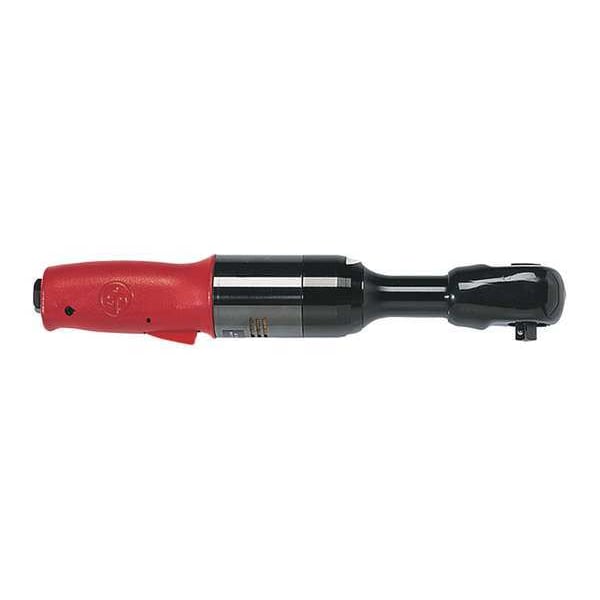

Chicago Pneumatic

3/8" 90 ft.-lb Air Ratchet Wrench

Chicago Pneumatic 3/8" 90 ft.-lb Air Ratchet Wrench CP7830Q
Hover or click to zoom Tap to zoom
$236.87
  • Item - Air Ratchets: Air Ratchet Wrench
  • Drive Size - Air Tools: 3/8" Square
  • Max. Torque: 90 ft.-lb
See full product details
This item ships free.

Total: $236.87

Chicago Pneumatic #CP7830Q Specifications

  • Item - Air Ratchets: Air Ratchet Wrench
  • Drive Size - Air Tools: 3/8" Square
  • Max. Torque: 90 ft.-lb
  • Torque Range: 10 to 70 ft.-lb.
  • Duty Cycle - Air Tools: Industrial Duty
  • Free Speed: 190 RPM
  • Length: 12"
  • Throttle: Trigger
  • Air Inlet: 1/4 in NPT
  • Variable Speed: No
  • Exhaust: Adjustable
  • Housing Material: Aluminum
  • Required Pressure: 90 PSI
  • Head Width: 1-3/4"
  • Handle Material: Aluminum with Rubber Grip
  • Item: Ratchet
  • CFM @ Full Load: 21.0
  • Average CFM @ 15 Second Run Time: 5.00
  • Duty: Industrial
  • Reversing: Yes
  • Min. Hose: 3/8"
  • Head Height: 1-1/4"
  • Retainer Type: Ball Detent
  • Square Drive Size: 3/8"
  • Air Inlet Size - Air Tools: 1/4" NPT
  • Tool Weight: 2.7 lb
  • Overall Length: 12 in
  • Features: Adjustable Side Exhaust, Low Noise
  • Air Consumption: 5 cfm
  • Exhaust Location: Side
  • Duty Rating: General Duty
  • Drive Size: 3/8 in Square
  • Air Pressure: 90 psi
  • Side to Center: 3/4 in
  • Min. Air Pressure: 90 psi
  • Min. Hose Size: 3/8 in
  • Max. Air Pressure: 90 psi
  • Power Source: Air Powered
  • Fastening Torque: 90 ft-lb
  • Country of Origin (subject to change): Japan

Description

Ratchet, Air Powered, Air Consumption 5 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Side, Drive Size 3/8 in Square, Retainer Type Ball Detent, Free Speed 190 RPM, Fastening Torque 90 ft-lb, Duty Rating General Duty, Tool Brand Chicago Pneumatic, Overall Length 12 in, Side to Center 3/4 in, Tool Weight 2.7 lb
