Chicago Pneumatic

3/8" Pistol Air Drill 6000 rpm

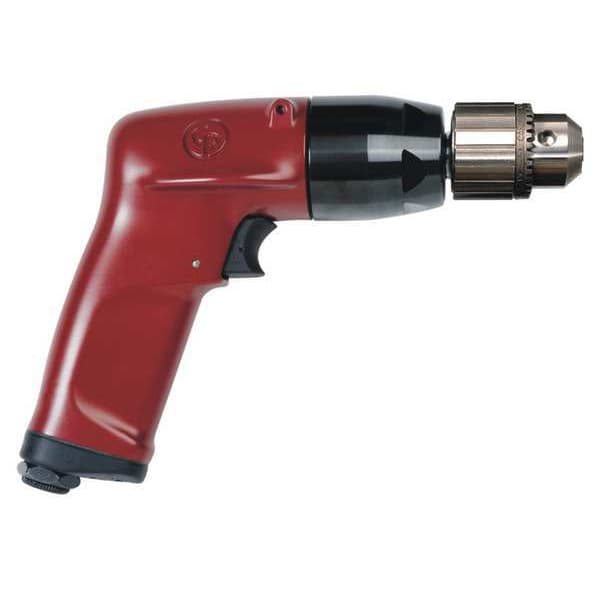

Chicago Pneumatic 3/8" Pistol Air Drill 6000 rpm CP1117P60
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$340.63
  • Item: Drill
  • Item - Air Drills: Air Drill
  • HP: 1.0
See full product details
This item ships free.
Total: $340.63

Chicago Pneumatic #CP1117P60 Specifications

  • Item: Drill
  • Item - Air Drills: Air Drill
  • HP: 1.0
  • HP - Air Tools: 1.00
  • Chuck Size - Air Drills: 3/8 in
  • CFM @ Full Load: 29.8
  • Drill Chuck Type - Air Drills: Keyed
  • Air Inlet: 1/4 in
  • Min. Hose Size: 3/8 in
  • Reversing: No
  • Free Speed: 6,000 RPM
  • Required Pressure: 90 psi
  • Overall Length: 7 7/8 in
  • Duty Cycle - Air Tools: Industrial Duty
  • Torque: 0.62 to 2.50 ft-lb
  • Body Style - Air Tools: Pistol
  • Bearings: Ball Bearing
  • Chuck Size: 3/8 in
  • Duty: Industrial
  • Air Inlet Size - Air Tools: 1/4 in NPT
  • Includes: Jacobs Chuck
  • Average CFM @ 15 Second Run Time: 7.40
  • Throttle Type: Trigger
  • Handle Material: Aluminum
  • Gear Train: Planetary
  • Housing Material: Aluminum
  • Variable Speed: Yes
  • Tool Weight: 2.2 lb
  • Drill Chuck Type: Keyless
  • Style: Pistol
  • Handle Type: Pistol Grip
  • Overall Width: 3 1/8 in
  • Overall Height: 6 7/8 in
  • Application: Drilling, Reaming Holes
  • Bearing Design: Ball
  • Duty Rating: Industrial Duty
  • Drilling Capacity in Wood: 3/8 in
  • Air Consumption: 29.5 cfm
  • Torque Range: 0 ft-lb to 2.5 ft-lb
  • Horsepower: 1 hp
  • Chuck Material: Metal
  • Spindle Thread Size: 3/8"-24
  • Min. Torque: 0 ft-lb
  • Power Source: Air-Powered
  • Noise Level: 83 dB
  • Exhaust Location: Handle
  • Max. Torque: 2.5 ft-lb
  • Reversible: No
  • Vibration Level: 2.5 m/sq sec
  • Drilling Capacity in Aluminum: 1/4 in
  • Air Pressure: 90 psi
  • Country of Origin (subject to change): Taiwan, Province of China
Feedback Help us improve our product information

Description

Drill, HP - Air Tools 1.00, Chuck Size - Air Drills 3/8 in, Drill Chuck Type - Air Drills Keyed, Reversing No, Pistol Body Style - Air Tools, Free Speed 6,000 RPM, Industrial Duty Duty Cycle - Air Tools, Torque 0.62 to 2.50 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 7.40, CFM @ Full Load 29.8, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Aluminum, Variable Speed Yes, Throttle Type Trigger, Bearings Ball Bearing, Housing Material Aluminum
