Shop STEELMAX

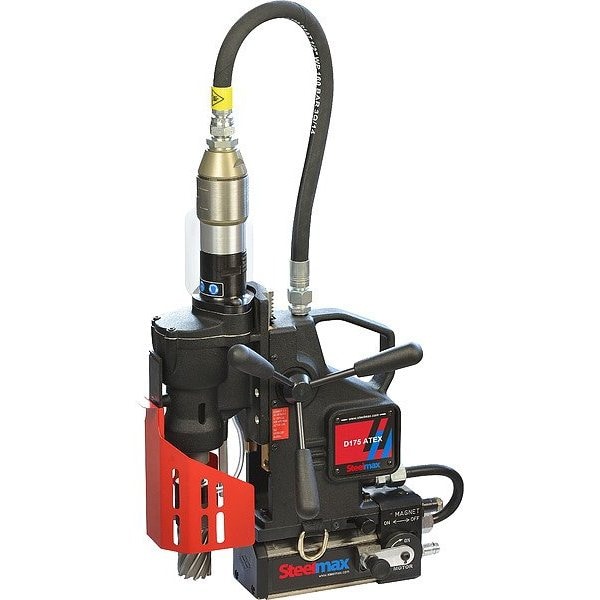

AirMagDrill, 290RPM, 50cfm, 3/4", Weldon

  • Mfr # SM-D175 ATX

  • Zoro # G110901669

product price:  $10,492.99
/ea
Free Shipping & Returns

Key Features

Air Inlet
1/2 in NPT
Free Speed
290 RPM
Overall Length
28 in
Tool Weight
90 lb
Throttle Type
Switch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SM-D175 ATX
Zoro #
G110901669
UPC #
848118005698
Country of Origin
Poland

Dimensions

Overall Length
28 in
Chuck Size
3/4 in
Overall Height
8 in
Overall Width
19 in
Air Inlet Connection Size
1/2 in

Details

Item
Air Magnetic Drill
Air Inlet
1/2 in NPT
Free Speed
290 RPM
Tool Weight
90 lb
Throttle Type
Switch
Housing Material
Aluminum
Variable Speed
No
Handle Type
Inline
Horsepower
1 hp
Power Source
Air-Powered
Air Consumption
50 cfm
Number of Speed Settings
2
Noise Level
70 dB
Air Pressure
87 psi
Explosive Environment Rated
ATEX Certified
Bearing Design
Ball and Needle
Application
Hazardous Environments Such as Offshore Oil Platforms, Mining
Drilling Capacity in Aluminum
2 in
Explosive Environment Rating
ATEX Zone 2
Series
Pneumatice mag drill
Exhaust Location
Side
Drilling Capacity in Steel
2 in
Duty Rating
Industrial Duty
Reversible
Forward Only
Features
70 dB Noise Level, 87 PSI Air Pressure, Ball Bearing Design
Tool Series
Pneumatic Mag Drill
Spindle Speed - Minimum
190 RPM
Air Inlet Type
NPT
Number of Spindle Speeds
2
Drill Travel
2 in
Chuck Style
Weldon
Twist Drill Capacity
3/4 in
High Speed Steel Annular Cutter Capacity - Maximum
1 3/4 in
Safety Features
ATEX Zone 2
Spindle Speed - Maximum
290 RPM
Tool Style
Large
Includes Coolant System
Coolant System Included
Power Source - TS Only
Air-Powered

Description

AirMagDrill,290RPM,50cfm,3/4",Weldon

Restrictions

Hazardous material
