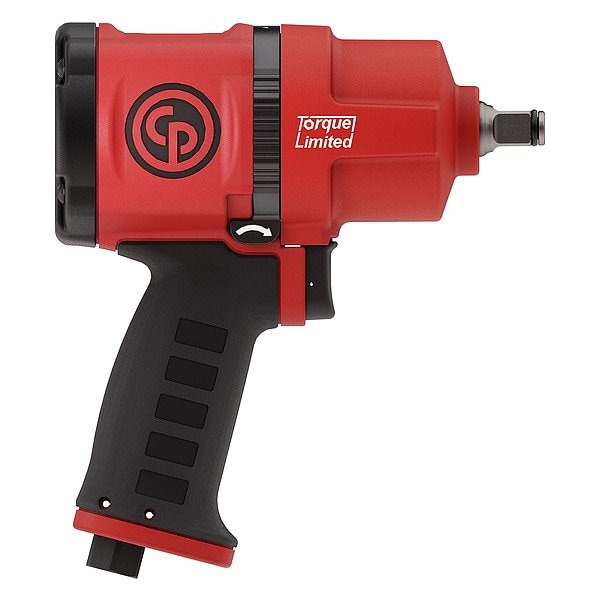

AirImpactWrench, 1/4in, NPT, Pistol-Grip

  • Mfr # CP7748TL

  • Zoro # G411420302


product price: $287.99
/ea
Free Shipping & Returns

Key Features

Free Speed
7,000 RPM
Air Inlet
1/4 NPT
Handle Type
Pistol Grip
Tool Weight
4.4 lb
Clutch Style
Twin Hammer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP7748TL
Zoro #
G411420302
UPC #
015451780746
Country of Origin
Taiwan, Province of China

Dimensions

Extended Anvil Length
1 in
Drive Size
1/2 in Square
Overall Length
6 89/100 in
Min. Hose Size
19/50 in

Details

Item
Air Impact Wrench, Torque Limited
Free Speed
7,000 RPM
Air Inlet
1/4 NPT
Handle Type
Pistol Grip
Tool Weight
4.4 lb
Clutch Style
Twin Hammer
Impact Sound Level
94.3 dBA
Handle Material
Rubber
Retainer Type
Friction Ring
Housing Material
Composite
Breakaway Torque
960 ft-lb
Explosive Environment Rated
No
Fastening Torque
103 ft-lb
Max. Bolt Capacity
1/2 in
Drive Type
Standard
Duty Rating
General Duty
Min. Air Pressure
90 psi
Built-In Light
No
Air Pressure
90 psi
Standards
ISO 15744, ISO 28927-2
Impact Rated
Yes
Power Source
Air Powered
Tool Style
Compact
Max. Air Pressure
90 psi
Vibration Level
12 m/sq sec
Includes
Air Impact Wrench Tool
Air Consumption
6.2 cfm
Features
Lightweight and Compact for Improved Comfort, Low Vibration Tool Due to Lower Torque in Forward, Torque Limited in Forward to Limit the Risk of Over Tightening and Maximum Torque in Reverse

Description

Air Impact Wrench, Torque Limited, Power Source Air Powered, Air Consumption 6.2 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 19/50 in, Exhaust Location Not Applicable, Duty Rating General Duty, Breakaway Torque 960 ft-lb, Fastening Torque 103 ft-lb, Free Speed 7,000 RPM, Impact Rated Yes, Explosive Environment Rated No, Explosive Environment Rating Not Applicable, Impact Sound Level 94.3 dBA, Impacts per Minute Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
