Shop CHICAGO PNEUMATIC

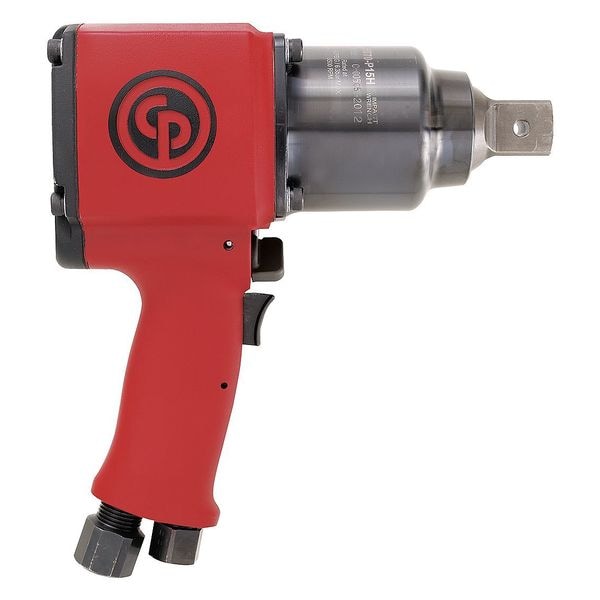

1" Pistol Grip Air Impact Wrench 1100 ft.-lb.

  • Mfr # CP6070-P15H

  • Zoro # G1834896

product price:
$
1,808.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1"
Free Speed
4,000 RPM
Air Inlet
3/8 in NPT
Handle Type
Pistol-Grip
Max. Torque
1100 ft.-lb.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP6070-P15H
Zoro #
G1834896
UPC #
015451709105
Country of Origin
Japan

Dimensions

Square Drive Size
1"
Anvil Length - Air Impacts
1.250"
Drive Size - Air Tools
1" Square
Min. Hose Size
1/2 in
Air Inlet Size - Air Tools
3/8" NPT
Overall Length
8 7/8 in
Drive Size
1 in
Hose Size - Minimum
1/2 in
Air Inlet Connection Size
3/8 in
Wire Rope Length
8 7/8 in
Length
8 7/8 in

Details

Item
Air Impact Wrench
Free Speed
4,000 RPM
Air Inlet
3/8 in NPT
Handle Type
Pistol-Grip
Max. Torque
1100 ft.-lb.
Anvil Type - Air Impacts
Standard
CFM @ Full Load
53.0
Housing Material
Steel
Duty
Industrial
Features
Compact 3-Part Construction & Easy Maintenance, Durable Reverse Valve & Steel Trigger, Hole Type Socket Retainer With O-Ring, Superior Quality Resisting To Worst Conditions And Usages
Handle Material
Aluminum
Blows per Minute
1100
Style
Pistol Grip
Average CFM @ 15 Second Run Time
13.25
Max. Bolt Capacity
1 1/2 in
Item - Air Impact Wrenches
Air Impact Wrench
Required Pressure
90 psi
Anvil
Standard
Duty Cycle - Air Tools
Industrial Duty
Tool Weight
11.9 lb
Torque Range
200 to 900 ft.-lb.
Retainer Type - Air Impacts
Ring
Retainer Type
Through Hole
Blows per Minute - Air Tools
1100
Body Style - Air Tools
Pistol
Standards
EN ISO 11148-6:2013, ISO-28927-2
Power Source
Air-Powered
Clutch Style
2 Jaw Clutch
Impact Rated
Yes
Number of Speed Settings
3
Built-In Light
No
Air Pressure
90 psi
Tool Style
Compact
Breakaway Torque
1,100 ft-lb
Duty Rating
Industrial Duty
Fastening Torque
900 ft-lb
Min. Air Pressure
90 psi
Impacts per Minute
1,100
Impact Sound Level
103 dB
Exhaust Location
Bottom
Drive Type
Standard
Vibration Level
13.9 m/sq sec
Air Consumption
53 cfm
Max. Air Pressure
90 psi
Power to Weight Ratio
92.4 ft-lb/lb
Bolt Capacity - Maximum
2 in
Frequency of Use
Frequent Maintenance to Heavy Production
Drive Shape
Square
Air Pressure - Minimum
90 psi
Air Inlet Type
NPT
Tool Life
Ultra Durable
Air Pressure - Maximum
90 psi
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Air Impact Wrench, Power Source Air-Powered, Air Consumption 53 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 1,100 ft-lb, Fastening Torque 900 ft-lb, Free Speed 4,000 RPM, Impact Rated Yes, Impact Sound Level 103 dB, Impacts per Minute 1,100, Number of Speed Settings 3, Power to Weight Ratio 92.4 ft-lb/lb, Max. Bolt Capacity 1 1/2 in
