Shop CHICAGO PNEUMATIC

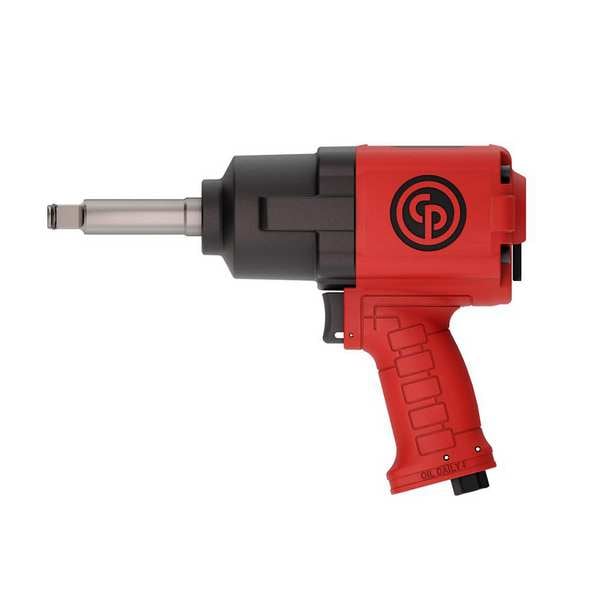

Impact Wrench, 1/2 in Square Drive Size

  • Mfr # CP7741-2

  • Zoro # G104180780

product price:
$
215.99
/ea
Free Shipping & Returns

Key Features

Free Speed
10,000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol-Grip
Power Source
Air-Powered
Housing Material
Composite
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP7741-2
Zoro #
G104180780
UPC #
015451791124
Country of Origin
Taiwan, Province of China

Dimensions

Min. Hose Size
3/8 in
Drive Size
1/2 in Square
Overall Length
9 5/8 in
Hose Size - Minimum
3/8 in
Air Inlet Connection Size
1/4 in
Wire Rope Length
9 5/8 in
Length
9 5/8 in

Details

Item
Impact Wrench
Free Speed
10,000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol-Grip
Power Source
Air-Powered
Housing Material
Composite
Max. Bolt Capacity
1/2 in
Number of Speed Settings
4
Air Pressure
91 psi
Power to Weight Ratio
138 ft-lb/lb
Standards
EN ISO 11148-6:2013, ISO-28927-2
Tool Style
Compact
Features
1 Setting in Reverse, 3 Settings in Forward, Front and Rear End Plates, Impact Mechanism
Duty Rating
Industrial Duty
Breakaway Torque
715 ft-lb
Drive Type
Extended
Impact Sound Level
104 dB
Fastening Torque
510 ft-lb
Clutch Style
Double Dog
Max. Air Pressure
91 psi
Air Consumption
4 cfm
Retainer Type
Friction Ring
Vibration Level
9.4 m/sq sec
Handle Material
Composite
Tool Weight
5.18 lb
Frequency of Use
Maintenance to Light Production
Air Pressure - Maximum
91 psi
Bolt Capacity - Maximum
1 in
Air Inlet Type
NPT
Drive Shape
Square
Tool Life
Long Lasting
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Impact Wrench, Power Source Air-Powered, Air Consumption 4 cfm, Air Inlet 1/4 in NPT, Air Pressure 91 psi, Max. Air Pressure 91 psi, Min. Hose Size 3/8 in, Duty Rating Industrial Duty, Breakaway Torque 715 ft-lb, Fastening Torque 510 ft-lb, Free Speed 10,000 RPM, Impact Sound Level 104 dB, Number of Speed Settings 4, Power to Weight Ratio 138 ft-lb/lb, Max. Bolt Capacity 1/2 in, Drive Size 1/2 in Square, Drive Type Extended, Retainer Type Friction Ring, Clutch Style Double Dog
