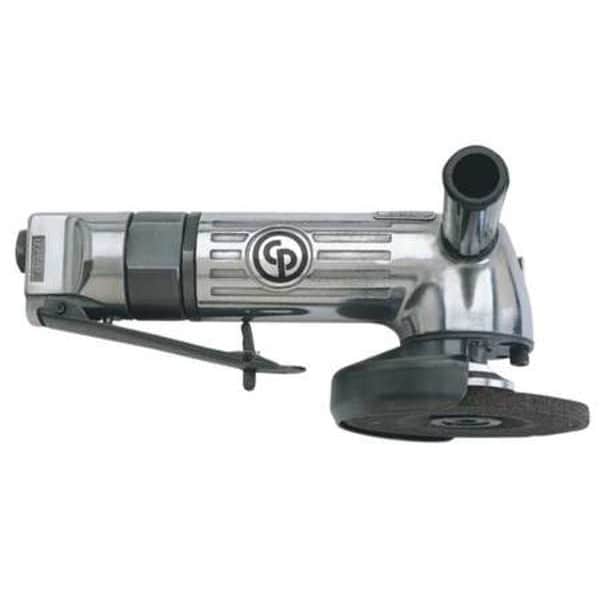

  9. Angle Angle Grinder, 1/4 in NPT Female Air Inlet, Heavy Duty, 13,000 RPM, 0.7 hp
Chicago Pneumatic

Angle Angle Grinder, 1/4 in NPT Female Air Inlet, Heavy Duty, 13,000 RPM, 0.7 hp

Chicago Pneumatic Angle Angle Grinder, 1/4 in NPT Female Air Inlet, Heavy Duty, 13,000 RPM, 0.7 hp CP854
Tap to zoom
Hover or click to zoom
$297.96
  • Air Inlet: 1/4 in NPT Female
  • Item: Angle Grinder
  • Duty: Heavy Duty
See full product details
This item ships free.
Total: $297.96

Chicago Pneumatic #CP854 Specifications

  • Air Inlet: 1/4 in NPT Female
  • Item: Angle Grinder
  • Duty: Heavy Duty
  • Free Speed: 13,000 RPM
  • Grinder Type: Angle
  • Handle Material: Ergonomic
  • HP: 0.7 hp
  • Includes: Flange, Nut and Wheel Nut Wrench, Side Handle, Wheel Guard
  • Min. Hose Size: 3/8 in
  • Overall Length: 9 in
  • Required Pressure: 90 psi
  • Throttle: Lever
  • Variable Speed: Yes
  • Housing Material: Aluminum
  • Exhaust: Front
  • Average CFM @ 15 Second Run Time: 6.0
  • CFM @ Full Load: 24.0
  • Grinder Orientation: Angle
  • Lock: Yes
  • Wheel Dia.: 4 in
  • Wheel Type: Type 27
  • Spindle Size: 3/8"-24
  • Tool Weight: 3.7 lb
  • Reach: Standard Reach
  • Lever Type: Lever
  • Standards: EN ISO 12100, ISO 8662-1, ISO 8662-8, PN8NTC1.2
  • For Wheel Type: Type 27
  • Grip Style: Barrel Grip
  • Safety Stop Mechanisms: Not Applicable
  • Spindle Thread Size: 3/8"-24
  • Lock-On Switch: Yes
  • Throttle Type: Lever
  • Grip Material: Aluminum
  • Kit Contents: (1) Bare Tool
  • Air Pressure: 90 psi
  • Wheel Diameter: 4 in
  • Anti-Restart Technology: No
  • Switch Type: Lever
  • Head Type: Flathead
  • Air Inlet Connection Size: 1/4 in
  • Number of Speed Settings: 1
  • Switch Location: Bottom
  • Max. Speed: 13,000 RPM
  • Horsepower: 0.6 hp
  • Anti-Kickback Clutch Type: None
  • Dust Management: Dust Guard
  • Air Consumption: 24 cfm
  • Vibration Level: 4.9 m/sq sec
  • Air Inlet Type: NPT
  • Anti-Vibration Technology: No
  • Lock-Off Switch: Yes
  • Power Source: Air Powered
  • Exhaust Location: Front
  • Air Inlet Gender: Female
  • Country of Origin (subject to change): Japan

Description

Air Grinder, Grinder Orientation Angle, Free Speed 13,000 RPM, Wheel Dia. 4 in, Wheel Type Type 27, HP 0.7 hp, Industrial Duty, Average CFM @ 15 Second Run Time 6.0, CFM @ Full Load 24.0, Air Inlet 1/4 in NPT, Required Pressure 90 psi, Min. Hose Size 3/8 in, Overall Length 9 in, Handle Material Cast Aluminum, Variable Speed Yes, Exhaust Front, Throttle Lever, Lock Yes, Includes Flange, Nut and Wheel Nut Wrench, Side Handle, Wheel Guard, Spindle Size 3/8 In.-24
