Chicago Pneumatic

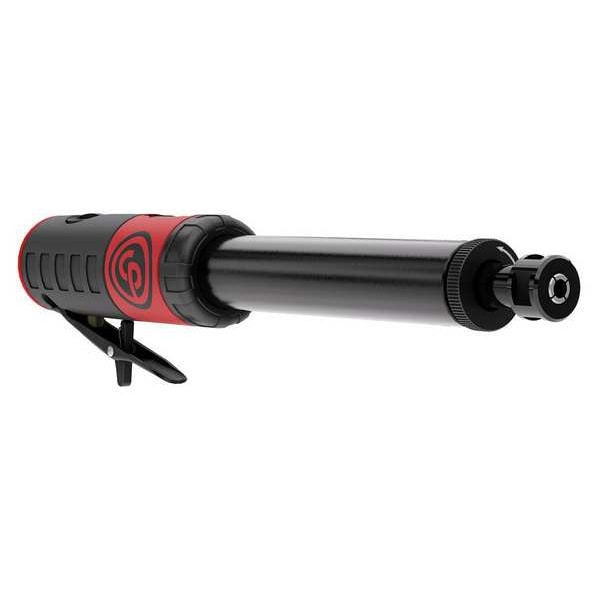

Die Grinder, 1/4 in NPT Female Air Inlet, Heavy Duty

product price: $302.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Air Inlet 1/4 in NPT Female
  • Duty Heavy Duty
  • Handle Material Composite with Rubber Grip
  • Includes (1) 1/4 in Collet, (1) 3mm Collet, (1) 6mm Collet, (1) Spanner
  • Min. Hose Size 3/8 in
See all product information

Product Information

Dimensions

Min. Hose Size 3/8 in
Overall Length 13 in
For Wheel Dia. 6 mm
Collet Size 1/4 in
Maximum Brushed Wheel Diameter 1/4 in
Air Inlet Connection Size 1/4 in
Maximum Mounted Point Diameter 1/4 in

Details

Item Die Grinder
Air Inlet 1/4 in NPT Female
Duty Heavy Duty
Handle Material Composite with Rubber Grip
Includes (1) 1/4 in Collet, (1) 3mm Collet, (1) 6mm Collet, (1) Spanner
Features Ergonomic, Helical Bevel Gear Design, Low-Profile Throttle Lever for Increased Comfort, Speed Governed to Maximize Productivity, Efficiency and Life of Abrasives, Spindle Lock Allows Faster and Easier Accessory Changes
Grip Style Barrel Grip
Lock-Off Switch Yes
Minimum Speed 22,000 RPM
Horsepower 0.6 hp
Case Included No
Anti-Kickback Clutch Type None
Brake Type None
Exhaust Location Rear
Air Inlet Type NPT
Anti-Vibration Technology Yes
Power Source Air Powered
Grinder Orientation Straight, Extended
Max. Speed 22,000 RPM
Safety Stop Mechanisms Safety Start/Stop
Anti-Restart Technology Yes
Dust Management None
Air Inlet Gender Female
Bearing Type Beveled
Material Application Ceramic, Glass, Steel, Wood
Tool Weight 2.4 lb
Tether Style Not Tether Capable
Accessory Free Tool Change No
Tool Style Straight
Switch Location Bottom
Lock-On Switch Yes
Air Consumption 3.6 cfm
Switch Type Safety Lever
Air Pressure 90 psi
Safety Features Safety Lever
Application Cleaning Surfaces, Cutting, Deburring, Duburring Steel, Cast Iron or Aluminum, General Maintenance Application, Grinding, Removing Gaskets and General Surface Prep, Rust Removal, Sanding Applications, Weld Preparation
Kit Contents (1) Bare Tool

Description

Die Grinder, Duty Heavy Duty, Horsepower 0.6 hp, Collet Size 1/4 in, Grinder Orientation Straight, Extended, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 22,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Straight, Kit Contents (1) Bare Tool, Includes (1) 1/4 in Collet, (1) 3mm Collet, (1) 6mm Collet, (1) Spanner, Case Included No, Grip Style Barrel Grip, Material Application Ceramic, Glass, Steel, Wood, Safety Stop Mechanisms Safety Start/Stop
