Shop CHICAGO PNEUMATIC

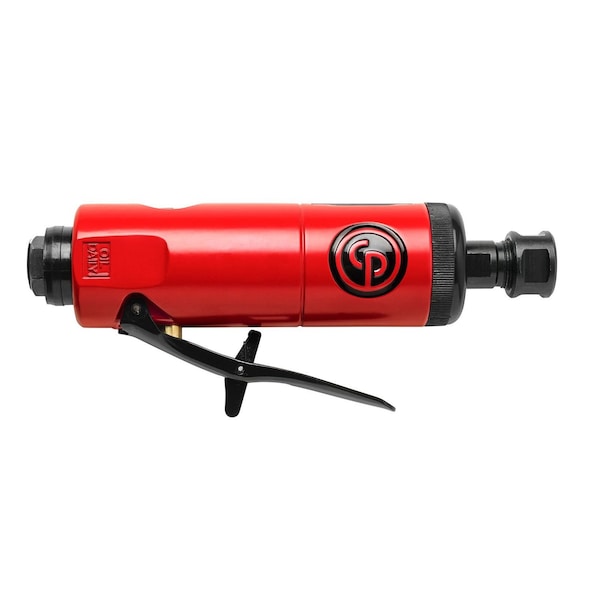

Air Straight Die Grinder, 1/4 in, 0.6 HP, Aluminum Alloy, Includes 1/4 in and 6mm Collet Holder

  • Mfr # CP872

  • Zoro # G0748428

product price:
$
93.89
/ea

Key Features

Overall Length
6 1/2 in
Air Inlet
1/4 in NPT Female
Horsepower
0.6 hp
Free Speed
27,000 RPM
Max. Speed
27,000 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP872
Zoro #
G0748428
UPC #
015451394851
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
6 1/2 in
Min. Hose Size
0.38 in
Air Inlet Connection Size
1/4 in
Collet Size
1/4 in
Spindle Thread Size
0.25 in
Width (in)
3.94 in
Hose Size - Minimum
3/8 in
Wire Rope Length
6 1/2 in
Length
6 1/2 in

Details

Item
Die Grinder
Air Inlet
1/4 in NPT Female
Horsepower
0.6 hp
Free Speed
27,000 RPM
Max. Speed
27,000 RPM
Grinder Type
Straight
Includes
1/4 in and 6mm Collet Holder
Duty
Medium Duty
Reach
6 39/64 in
Housing Material
Aluminum, Composite Over-sleeve
Collet
1/4 in
Handle Material
Aluminum
Characteristics
8-Minute Working Time, No-Mess Dispensing, Reusable Cartridges, Fast Cure, And Flexible
Bearing Type
Ball
Grinder Orientation
Straight
Throttle
Safety Lever
CFM @ Full Load
20 cfm
Variable Speed
Yes
Average CFM @ 15 Second Run Time
10.0
Tool Weight
1.25 lb
Air Inlet Type
NPT
Application
Grinding, Moldings, Polishing
Features
Efficient and Economic
Vibration Level
2.5 m/sq sec
Air Pressure
90 psi
Minimum Speed
27,000 RPM
Standards
ISO-28927-12
Switch Location
Bottom
Exhaust Location
Rear
Safety Features
Safety Lever
Kit Contents
(1) Bare Tool
Switch Type
Safety Lever
Power Source
Air Powered
Tool Style
Straight
Air Consumption
26 cfm
Air Inlet Gender
Female
Handle Type
Straight
Sound Power (dB(A))
111.9 dB
Angle Type
Straight
Sound Pressure (dB(A))
100.9 dB
Color
Red, Black
Air Consumption at Free Speed (cfm)
26 cfm
Starting System
Safety Lever
Speed - Maximum
27,000 RPM
Frequency of Use
Maintenance to Light Production
Tool Life
Long Lasting
Robot Mounting Components Included
Tool Only
Speed - Minimum
27,000 RPM
Power Source - TS Only
Air Powered
Power Source - old
Air Powered

Description

Die Grinder, Duty Medium Duty, Horsepower 0.6 hp, Collet Size 1/4 in, Grinder Orientation Straight, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 27,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Straight, Kit Contents (1) Bare Tool, Includes 1/4 in and 6mm Collet Holder, Safety Features Safety Lever, Switch Location Bottom, Power Source Air Powered
