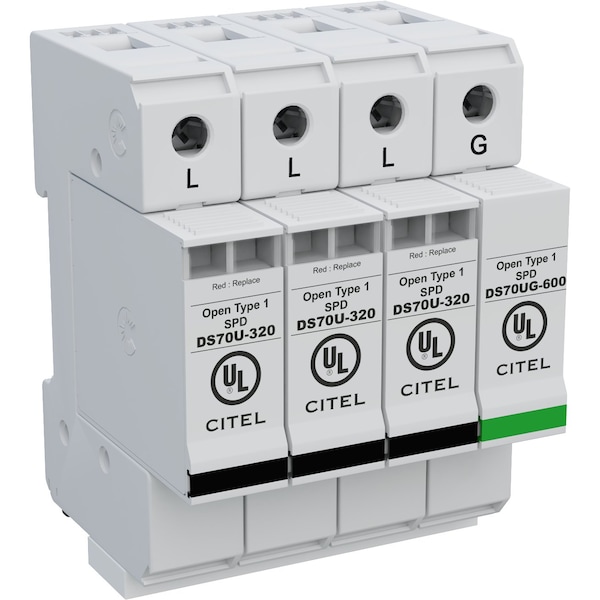

Surge Protection Device, 3 Phase, 240V, 3 Wires
Mfr # DS74US-240D/G
Zoro # G402664326
product price: $292.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
Din Rail
Phase
3
Voltage
240V
Voltage Protection Rating
1500V/1000V
Number of Wires
3 Wires
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DS74US-240D/G
Zoro #
G402664326
UPC #
-
Country of Origin
China
Dimensions
Length
90 mm
Depth
72 mm
Width
67 mm
Details
Item
Surge Protection Device
Mounting Style
Din Rail
Phase
3
Voltage
240V
Voltage Protection Rating
1500V/1000V
Number of Wires
3 Wires
Modes of Protection
L-L, L-G
Max. Surge Current per Mode
75kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
Yes
Max. Continuing Operating Voltage
320/320/255V
IP Rating
IP20
Enclosure Material
Thermoplastic
Standards
UL 1449 Type 1
