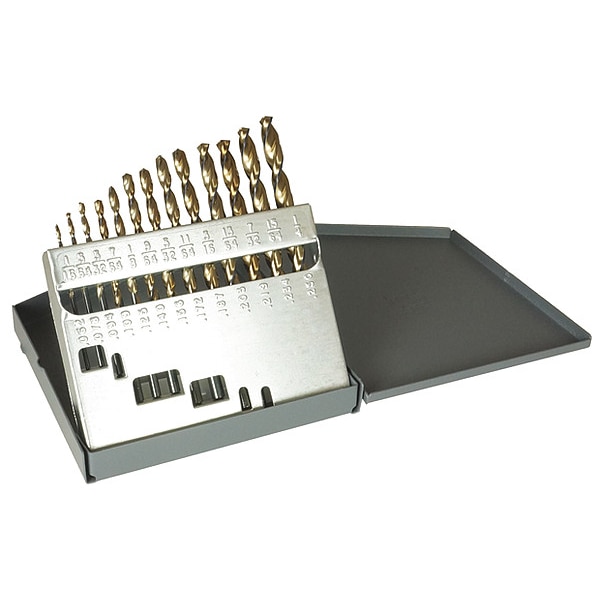

13PC 1/16-1/4x1/64 HSS 135 Degree Heavy-Duty Parabolic Jobber Drill Set Cle-Line 1872 Black & Gold

  • Mfr # C18619

  • Zoro # G4954586

product price:
$
33.59
/ea

Key Features

Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Depth:Dia. Ratio
8xD
Drill Bit Grouping
Drill Bit Set
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C18619
Zoro #
G4954586
UPC #
697334186199
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
8xD
Drill Bit Size
1/16 in to 1/4 in by 64ths
Depth x Dia. Ratio
8xD
Drill Bit Dimension Type
Fractional Inch
Drill Point Length
0.0000 in
Drill Length Class
Jobber-Length
Drill Diameter Tolerance
+0.0000 in /-0.0005 in - +0.0000 in /-0.0007 in
Smallest Drill Bit Size
1/4 in
Drill Bit Sizes Included
1/16 in, 1/4 in, 1/8 in, 11/64 in, 13/64 in, 15/64 in, 3/16 in, 3/32 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/64 in
Largest Drill Bit Size
1/16 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Grouping
Drill Bit Set
Standards
Not Rated
Coolant Fed
Non-Coolant Through
Flute Type
Spiral
Helix Angle
40 Degrees
Spiral Direction
Right Hand
Material - Machining
High Speed Steel
Series
1872
Drill Bit Point Type
Split Point
Finish - Machining
Black Oxide
Shank Type - Machining
Straight
Measurement System
Fractional Inch
Number of Drill Bits
13
Thread Direction
Right Hand
Helix Angle - Maximum
40 Degrees

Description

The CLE-LINE - C18619 is a jobber-length drill bit set made from high speed steel, featuring 13 straight shank bits ranging in size from 1/16 inch to 1/4 inch in fractional increments. Each drill bit has a 135-degree split point tip designed for right-hand cutting and a black oxide finish. The bits have a spiral flute with a 40-degree helix angle and a drill diameter tolerance between +0.0000 in/-0.0005 in and +0.0000 in/-0.0007 in.

Key Features:

  • Contains 13 drill bits sized from 1/16 in to 1/4 in by 64ths
  • Material: High speed steel for machining applications
  • Jobber-length design for standard drilling depth capability
  • Straight shank type compatible with common drill chucks
  • Split point drill tip at 135 degrees for precision starts
  • Spiral flutes with a 40-degree right-hand helix angle for chip removal
  • Non-coolant through design requiring external coolant if needed
  • Black oxide finish for corrosion resistance and reduced friction
  • Fractional inch measurement system
  • Drill diameter tolerance of +0.0000 in / -0.0005 to -0.0007 in for consistency
