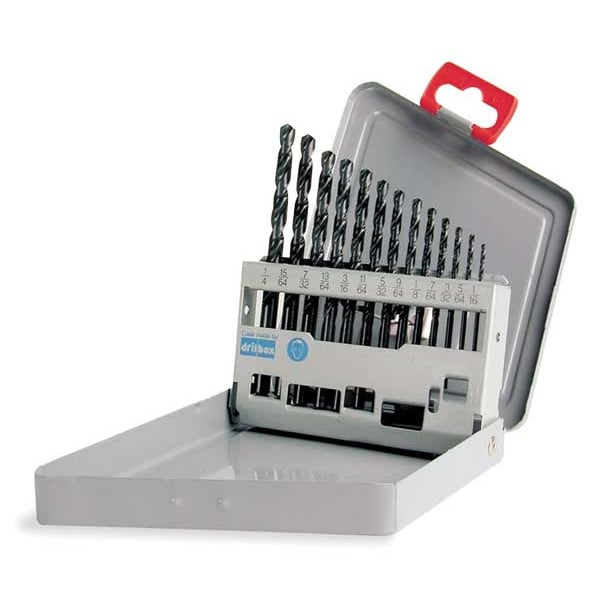

13PC 118 Degree General Purpose Jobber Lngth Drill Set Cle-Line 1899 Steam Oxide HSS RHS/RHC 1/16-1/4x1/64

  • Mfr # C21105

  • Zoro # G1479353

product price:  $24.65
/ea

Key Features

Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C21105
Zoro #
G1479353
UPC #
697334211051
Country of Origin
United States

Dimensions

Drill Bit Size
1/16 in to 1/4 in by 64ths
Depth:Dia. Ratio
4xD
Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64, 1/4"
Shank Dia.
1/16 in
Drill Bit Dimension Type
Fractional Inch
Depth x Dia. Ratio
4xD
Size Range
1/16"-1/4"
Largest Drill Bit Size
1/4 in
Drill Bit Sizes Included
1/16 in, 1/4 in, 1/8 in, 11/64 in, 13/64 in, 15/64 in, 3/16 in, 3/32 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/64 in
Smallest Drill Bit Size
1/16 in
Drill Length Class
Jobber-Length
Overall Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in
Wire Rope Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Point Type
Conventional Point
List Number
1899
Drill Bit Grouping
Drill Bit Set
Standards
ASME B94.11M-1993, DIN 338
Drill Style
Jobber Drill
Measurement System
Fractional Inch
Flute Type
Spiral
Left/Right Hand
Right
Shank Type
Straight
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Primary Material Application
Cast Iron, Steel
Number of Drill Bits
13
Finish - Machining
Black Oxide
Aircraft Drill
No
Shank Type - Machining
Straight
Drill Bit Point Type
Conventional Point
Drill Bit Case Type
Metal Index
Number of Flutes
2
Primary Material Application ISO Code
K, P
Spiral Direction
Right Hand
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

The CLE-LINE - C21105 is a jobber-length drill bit set intended for drilling operations in the materials and bit sizes specified. The set includes 13 high-speed steel bits with conventional points, ranging in size from 1/16 inch to 1/4 inch, measured in fractional inches. The bits have a right-hand spiral direction and straight shanks that conform to ASME B94.11M-1993 and DIN 338 specifications. The bits come housed in a metal index for organized storage.

Key Features:

  • Drill bit sizes included: 1/16”, 5/64”, 3/32”, 7/64”, 1/8”, 9/64”, 5/32”, 11/64”, 3/16”, 13/64”, 7/32”, 15/64”, and 1/4”.
  • Overall length range: 1 7/8 in to 4 in (for included sizes).
  • Material: High-speed steel with a black oxide finish.
  • Point angle: 118 degrees with a conventional point type.
  • Two-flute spiral design with helix angles between 21 and 34 degrees.
  • Shank type: Straight, with a shank diameter matching drill bit sizes.
  • Depth-to-diameter ratio of 4x, classified as jobber length.
  • Cutting direction: Right-hand rotation.
  • Supplied in a metal drill index.
