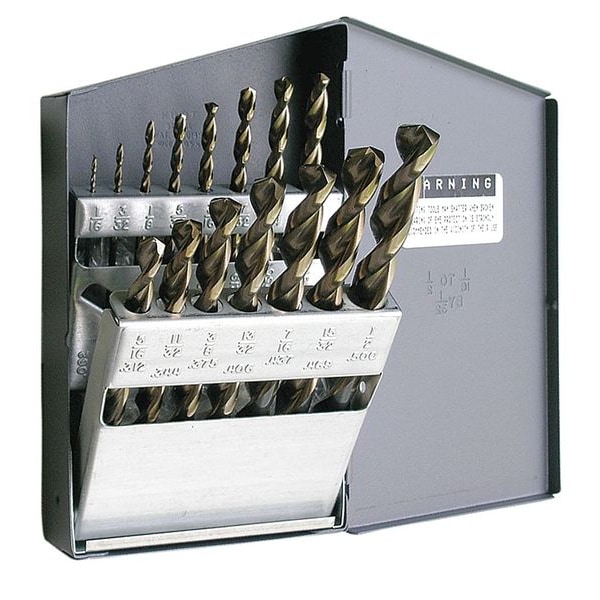

15PC 135 Degree Heavy-Duty Parabolic Jobber Dril Set Cle-Line 1872 Black & Gold HSS 1/16-1/2x1/32

  • Mfr # C18620

  • Zoro # G0724936

product price:  $71.15
/ea

Key Features

Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C18620
Zoro #
G0724936
UPC #
697334186205
Country of Origin
United States

Dimensions

Drill Bit Size
1/16 in to 1/2 in by 32nds
Sizes Included
1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Depth:Dia. Ratio
8xD
Shank Dia.
1/6 in
Drill Bit Dimension Type
Fractional Inch
Depth x Dia. Ratio
8xD
Largest Drill Bit Size
1/2 in
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Smallest Drill Bit Size
1/16 in
Drill Length Class
Jobber-Length
Overall Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Size Range
1/16"-1/2"

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
List Number
1872
Drill Bit Grouping
Drill Bit Set
Standards
ASME B94.11M-1993, DIN 338
Shank Type
Straight
Measurement System
Fractional Inch
Primary Material Application
Aluminum, Cast Iron, Steel
Finish - Machining
Black and Gold
Drill Bit Point Type
Split Point
Material - Machining
High Speed Steel
Number of Drill Bits
15
Material Grade - Machining
Heavy Duty
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Aircraft Drill
No
Drill Bit Case Type
Metal Index
Flute Type
Parabolic
Number of Flutes
2
Spiral Direction
Right Hand
Primary Material Application ISO Code
K, N, P
Point Type
Split point
Drill Style
Jobber Drill
Left/Right Hand
Right
Helix Angle - Maximum
45 Degrees
Helix Angle - Minimum
35 Degrees

Description

The CLE-LINE - C18620 is a jobber length drill bit set consisting of 15 straight shank bits ranging from 1/16" to 1/2" in fractional inch sizes. Made from high speed steel (HSS), these drill bits feature a 135° split point tip for right-hand spiral drilling and are intended for use in machining aluminum, cast iron, and steel. The set includes bits with overall lengths varying from 1 7/8" to 6", and comes with a metal drill index for organized storage. This set meets ASME B94.11M-1993 and DIN 338 specifications and is not rated for aircraft applications.

Key Features:

  • Number of pieces: 15 drill bits covering sizes 1/16" to 1/2" by 32nds increments.
  • Material: Made from high speed steel (HSS) for machining durability.
  • Point type: 135° split point for split point geometry (135°).
  • Flute type: Two-flute parabolic design with a helix angle between 35° and 45°.
  • Shank: Straight shank with a diameter of 1/6".
  • Cutting direction: Right-hand spiral for intended for use in right-hand spiral drilling operations.
  • Included storage: Metal index case for drill bit organization.
  • Applicable materials: Applicable for machining aluminum, cast iron, and steel per ISO codes K, N, and P.
