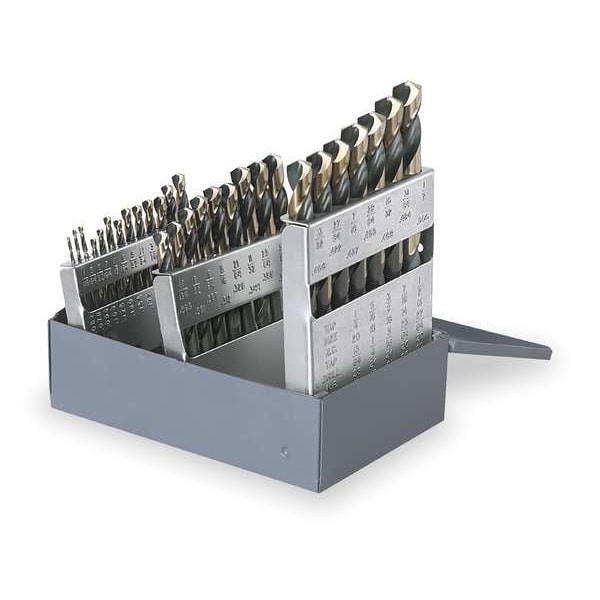

135 Degree Heavy-Duty Mechanics Length Drill Set Cle-Line 1875R Black & Gold HSS, 29-Piece

  • Mfr # C21162
  • Zoro # G1115064
product price:
$
116.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C21162
Zoro #
G1115064
UPC #
697334211624
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
4xD
Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/16 in to 1/2 in by 64ths
Depth x Dia. Ratio
4xD
Largest Drill Bit Size
1/2 in
Drill Bit Sizes Included
1/16 in, 3/32 in, 1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in, 5/16 in, 11/32 in, 3/8 in, 13/32 in, 7/16 in, 15/32 in, 1/2 in
Smallest Drill Bit Size
1/16 in
Drill Length Class
Mechanics-Length

Details

Item
Mechanics Length Drill Bit Set
Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
List Number
1875R
Drill Bit Grouping
Drill Bit Set
Point Type
Split point
Shank Type
Straight with Three Flats
Flute Type
Spiral
Number of Flutes
2
Standards
Not Rated
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Primary Material Application
All Materials
Number of Drill Bits
29
Coolant Fed
Non-Coolant Through
Finish - Machining
Black Oxide
Material - Machining
High Speed Steel
Drill Bit Case Type
Metal Index
Shank Type - Machining
Straight with Three Flats
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

The CLE-LINE - C21162 is a mechanics-length drill bit set made of high speed steel, intended for use with fractional-inch drilling applications; review material compatibility prior to drilling. The set includes 29 drill bits ranging in size from 1/16 inch to 1/2 inch, featuring split point tips and straight shanks with three flats for chuck engagement. Included in a metal drill index case, the set provides storage and easy access. The drill bits have a 135° point angle and a 4x depth-to-diameter ratio; non-coolant-through design (no internal coolant feed).

Key Features:

  • Contains 29 pieces, sizes from 1/16" to 1/2" in fractional measurements.
  • Made of high speed steel with black oxide finish for machining.
  • Drill bits have split point tips with a 135° point angle.
  • Spiral flutes with helix angles between 21° and 34° for effective cutting.
  • Shanks are straight with three flats for chuck engagement.
  • Depth-to-diameter ratio is 4x for each drill bit.
  • Drill bits are mechanics length and non-coolant through design.
  • Includes a metal drill index case for storage and organization.
