15PC 135 Degree Heavy-Duty Parabolic Jobber Length Drill Set Cle-Line 1872-TN TiN HSS RHS/RHC 1/16-1/2

  • Mfr # C18701

  • Zoro # G2361606

product price:  $107.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C18701
Zoro #
G2361606
UPC #
697334187011
Country of Origin
United States

Dimensions

Sizes Included
1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/16 in to 1/2 in by 32nds
Shank Dia.
1/6 in
Depth:Dia. Ratio
8xD
Depth x Dia. Ratio
8xD
Drill Length Class
Jobber-Length
Largest Drill Bit Size
1/2 in
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Smallest Drill Bit Size
1/16 in
Overall Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Size Range
1/16"-1/2"

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Drill Bit Grouping
Drill Bit Set
List Number
1872-TN
Standards
ASME B94.11M-1993, DIN 338
Shank Type
Straight
Flute Type
Parabolic
Measurement System
Fractional Inch
Material - Machining
High Speed Steel
Number of Drill Bits
15
Drill Bit Point Type
Split Point
Material Grade - Machining
Heavy Duty
Finish - Machining
TiN
Aircraft Drill
No
Primary Material Application
Aluminum, Cast Iron, Stainless Steel, Steel
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Drill Bit Case Type
Metal Index
Spiral Direction
Right Hand
Number of Flutes
2
Primary Material Application ISO Code
K, M, N, P
Point Type
Split point
Left/Right Hand
Right
Drill Style
Jobber Drill
Helix Angle - Minimum
35 Degrees
Helix Angle - Maximum
45 Degrees

Description

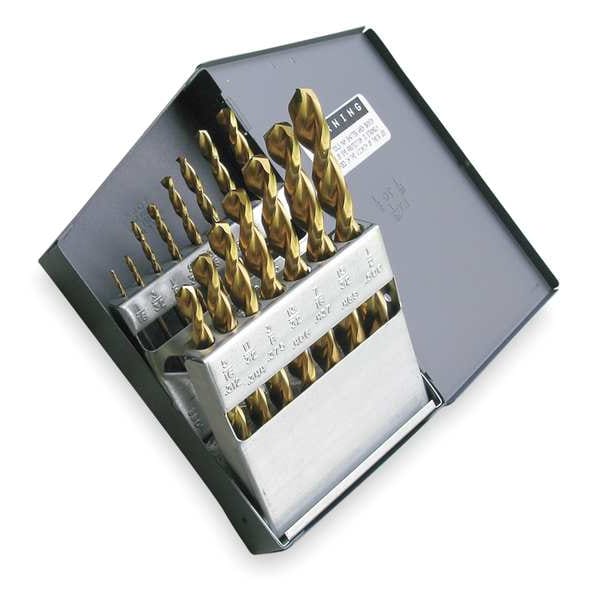

The CLE-LINE C18701 is a jobber-length drill bit set consisting of 15 fractional-inch-sized bits ranging from 1/16" to 1/2". Manufactured from heavy duty high speed steel with a TiN finish, these drill bits are designed for machining applications on a variety of materials including aluminum, cast iron, stainless steel, and steel. The bits feature split points and a right-hand spiral direction for standard drilling operations. This set includes a metal drill index for organized storage.

Key Features:

  • Drill bit sizes included: 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2".
  • Overall lengths vary from 1 7/8" to 6" depending on size.
  • Material: Heavy duty high speed steel with titanium nitride (TiN) coating.
  • Point type: 135° split point for cutting.
  • Flutes: 2 parabolic flutes with helix angles between 35° and 45°.
  • Shank: Straight shank with 1/6" diameter.
  • Cutting direction: Right hand spiral.
  • Complies with ASME B94.11M-1993 and DIN 338 standards.
  • Supplied in a metal drill bit index case.
