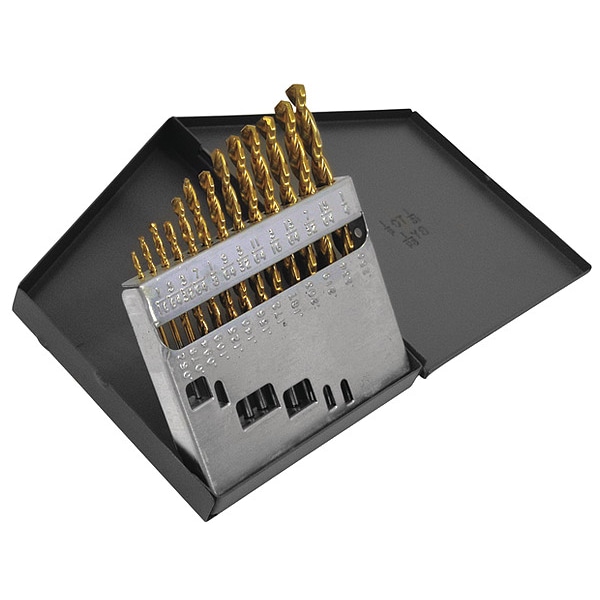

13PC 1/16-1/4x1/64 HSS 135 Degree HD Parabolic Jobber Length Drill Set Cle-Line 1872 TiN RHS/RHC

  • Mfr # C18700

  • Zoro # G4954531

product price:  $52.89
/ea

Key Features

Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Grouping
Drill Bit Set
Depth:Dia. Ratio
8xD
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C18700
Zoro #
G4954531
UPC #
697334187004
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
8xD
Drill Bit Size
1/16 in to 1/4 in by 64ths
Depth x Dia. Ratio
8xD
Drill Bit Dimension Type
Fractional Inch
Drill Point Length
0.0000 in
Drill Length Class
Jobber-Length
Drill Diameter Tolerance
+0.0000 in /-0.0005 in - +0.0000 in /-0.0007 in
Smallest Drill Bit Size
1/16 in
Largest Drill Bit Size
1/4 in
Drill Bit Sizes Included
1/16 in, 1/4 in, 1/8 in, 11/64 in, 13/64 in, 15/64 in, 3/16 in, 3/32 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/64 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Grouping
Drill Bit Set
Standards
Not Rated
Coolant Fed
Non-Coolant Through
Flute Type
Parabolic
Helix Angle
40 Degrees
Series
1872-TN
Shank Type - Machining
Straight
Spiral Direction
Right Hand
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Finish - Machining
TiN
Material - Machining
High Speed Steel
Number of Drill Bits
13
Thread Direction
Right Hand
Helix Angle - Maximum
40 Degrees

Description

The CLE-LINE - C18700 is a jobber-length drill bit set comprising 13 high speed steel bits for fractional inch drilling applications. Bit sizes are 1/16 in to 1/4 in (by 64ths increments), with drill bits that have a straight shank and a right-hand spiral (right-hand helix/rotation). Each bit includes a parabolic flute and a 135-degree split point. Finish: Titanium Nitride (TiN) coating. Intended for non-coolant through use (requires external coolant application if coolant is used).

Key Features:

  • Drill size range: 1/16 in to 1/4 in by 64ths increments
  • Number of drill bits: 13 pieces in the set
  • Material: High speed steel construction
  • Drill length class: Jobber length
  • Cutting direction: Right hand with right-hand spiral
  • Flute type: Parabolic
  • Drill point: 135-degree split point
  • Drill diameter tolerance: +0.0000 in / -0.0005 to -0.0007 in
  • Helix angle: 40 degrees
  • Shank type: Straight
  • Finish: Titanium Nitride (TiN) coating
  • Coolant type: Non-coolant through (requires external coolant application if used)
