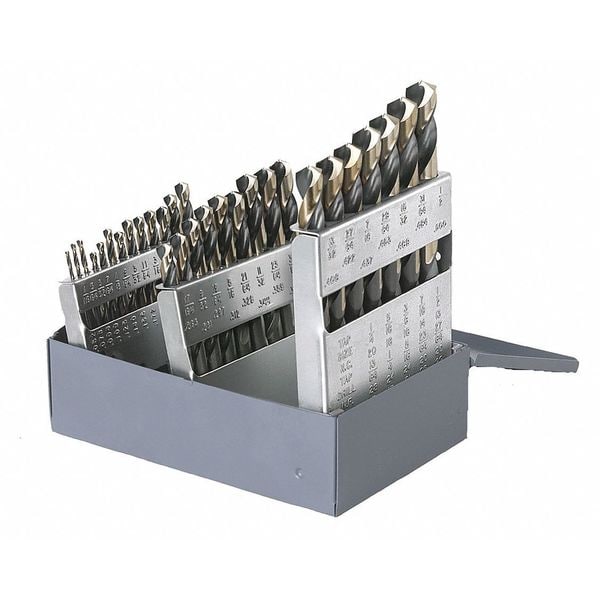

29PC 135 Degree Heavy-Duty Jobber Length Drill Set Cle-Line 1878 Black & Gold HSS 1/16-1/2x1/64
- Mfr # C18125
- Zoro # G7370505
product price:Â
$
119.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
Cobalt
Includes
Metal Drill Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C18125
- Zoro #
- G7370505
- UPC #
- 697334181255
- Country of Origin
- United States
Dimensions
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Depth:Dia. Ratio
- 4xD
- Shank Dia.
- 1/6 in
- Drill Bit Dimension Type
- Fractional Inch
- Depth x Dia. Ratio
- 4xD
- Smallest Drill Bit Size
- 1/16 in
- Drill Length Class
- Jobber-Length
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Largest Drill Bit Size
- 1/2 in
- Overall Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Wire Rope Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Description
The CLE-LINE C18125 is a jobber length drill bit set consisting of 29 drill bits sized fractionally from 1/16 inch up to 1/2 inch. Made from high speed steel (HSS), these drill bits feature a split point tip and two-flute spiral geometry. The set includes a metal index case for storage and organization and features bits with right-hand cutting direction and straight shanks with three flats for chuck engagement. The set is manufactured to meet the ASME B94.11M and DIN 338 standards, with a depth-to-diameter ratio of 4xD.
Key Features:
- Number of pieces: 29 drill bits covering sizes from 1/16" to 1/2" by 64ths.
- Drill bit material: High speed steel (HSS).
- Point type: Split point geometry for penetration and reduced walking (based on split-point design).
- Shank type: Straight with three flats, 1/6 inch diameter.
- Flute type: Two-flute spiral with helix angles ranging from 21 to 34 degrees.
- Overall length: 1 7/8 in to 6 in (varies by bit size).
- Primary material compatibility: Aluminum, cast iron, and steel (ISO codes K, N, P).
- Cutting direction: Right hand spiral.
- Includes metal drill bit index for organized storage.
