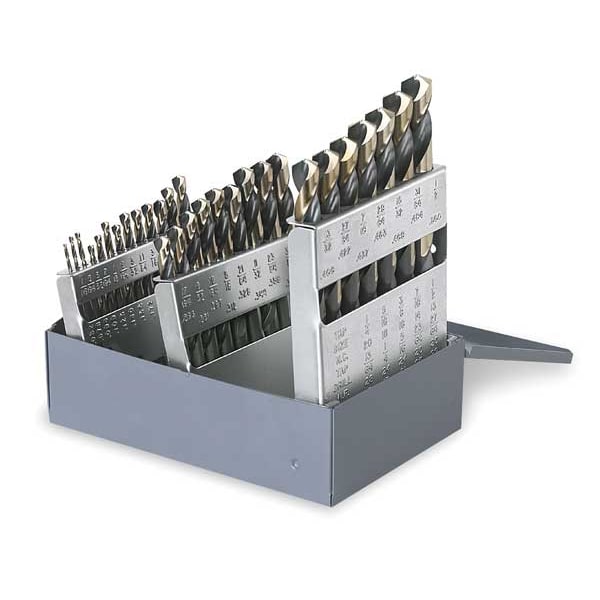

29PC 135 Degree Heavy-Duty Mechanics Length Drill Set Cle-Line 1876 Black & Gold HSS 1/16-1/2x1/64

  • Mfr # C21163
  • Zoro # G1337436
product price:
$
145.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C21163
Zoro #
G1337436
UPC #
697334211631
Country of Origin
United States

Dimensions

Drill Bit Dimension Type
Fractional Inch
Shank Dia.
3/8 in
Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64" , 1/2"
Depth:Dia. Ratio
4xD
Drill Bit Size
1/16 in to 1/2 in by 64ths
Depth x Dia. Ratio
4xD
Drill Bit Sizes Included
1/16 in, 3/32 in, 1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in, 5/16 in, 11/32 in, 3/8 in, 13/32 in, 7/16 in, 15/32 in, 1/2 in
Largest Drill Bit Size
1/2 in
Smallest Drill Bit Size
1/16 in
Drill Length Class
Mechanics-Length

Details

Item
Reduced Shank Drill Set
Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Application
For Alloy, Stainless And Tool Steels And Cast Iron
Point Type
Split point
Shank Type
Reduced
List Number
1876
Flute Type
Spiral
Number of Flutes
2
Standards
Not Rated
Finish - Machining
Black Oxide
Material - Machining
High Speed Steel
Primary Material Application
All Materials
Number of Drill Bits
29
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Drill Bit Point Type
Split Point
Drill Bit Case Type
Metal Index
Shank Type - Machining
Straight with Three Flats
Material Grade - Machining
Heavy Duty
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

The CLE-LINE C21163 is a reduced shank drill bit set consisting of 29 pieces with fractional inch sizes ranging from 1/16 inch to 1/2 inch. Made from high speed steel (HSS), these drill bits include a split point design for right-hand cutting operation. Included in a metal drill index, the bits have a mechanics-length drill class and a black oxide finish. The reduced shank with three flats — sized at 3/8 inch diameter — allows use in chucks sized for that shank diameter.

Key Features:

  • Contains 29 drill bits with sizes from 1/16" to 1/2", including fractional increments by 64ths.
  • High speed steel (HSS) drill bits for intended shop drilling applications.
  • Include a split point tip with a 135° angle to include a split point tip for reduced bit walk during drilling.
  • Two-flute spiral design with helix angles ranging from 21° to 34° for chip evacuation.
  • Reduced straight shank diameter of 3/8" with three flats for chuck engagement.
  • Has a black oxide finish.
  • Mechanics-length drill bits with a depth-to-diameter ratio of 4:1, suitable for a variety of standard drilling depths.
  • Supplied in a metal index case for organized storage and transport.
