60PC No 1-No 60 HSS 135 Degree Heavy-Duty Jobber Length Drill Set Cle-Line 1801 Steam Oxide RHS/RHC
Mfr # C21124
Zoro # G4958941
product price:Â
$
99.59
/ea
Key Features
Number of Pieces
60
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Depth:Dia. Ratio
4xD
Drill Bit Grouping
Drill Bit Set
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C21124
- Zoro #
- G4958941
- UPC #
- 697334211242
- Country of Origin
- United States
Dimensions
- Depth:Dia. Ratio
- 4xD
- Drill Bit Size
- #60 to #1
- Depth x Dia. Ratio
- 4xD
- Drill Bit Dimension Type
- Wire
- Drill Length Class
- Jobber-Length
- Drill Diameter Tolerance
- +0.0000 in /-0.0005 in - +0.0000 in /-0.0007 in
- Drill Point Length
- Various
- Drill Bit Sizes Included
- #1, #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9
- Largest Drill Bit Size
- #1
- Smallest Drill Bit Size
- #60
Description

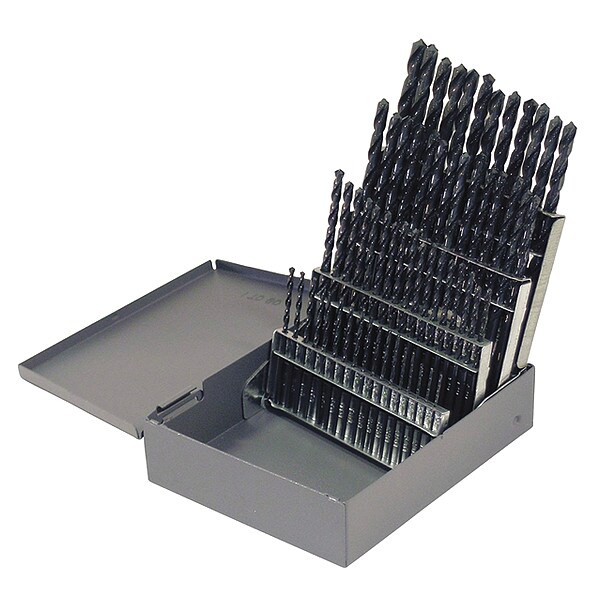

The CLE-LINE C21124 is a jobber length drill bit set featuring 60 high-speed steel bits ranging in size from #60 to #1. The bits have a straight shank and a right-hand spiral. The set includes bits with a split point and a 135-degree point angle, bit point types and sizes are intended for general drilling operations; set includes 60 high-speed steel bits sized #60 to #1. bits are non-coolant through (do not include internal coolant channels).
Key Features:
- Drill bit sizes range from #60 (smallest) to #1 (largest), covering 60 pieces in total.
- Made from high-speed steel.
- Jobber length bits with a 4x depth-to-diameter ratio.
- Includes straight-shank bits for use with chucks that accept the provided shank geometry and corresponding bit sizes.
- Right-hand spiral direction and cutting thread.
- Split point design with a 135-degree point angle.
- Finished with black oxide.
- Drill diameter tolerances: +0.0000 in/-0.0005 in and +0.0000 in/-0.0007 in (by size, as specified for the set).
- Features variable helix angle and spiral flute design.
- Measurement system based on wire gauge sizing.
