29PC 135 Degree Heavy-Duty Parabolic Jobber Dril Set Cle-Line 1872 Black & Gold HSS 1/16-1/2x1/64
Mfr # C18622
Zoro # G1507694
product price:
$
134.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C18622
- Zoro #
- G1507694
- UPC #
- 697334186229
- Country of Origin
- United States
Dimensions
- Shank Dia.
- 1/6 in
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Depth:Dia. Ratio
- 8xD
- Drill Bit Dimension Type
- Fractional Inch
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Depth x Dia. Ratio
- 8xD
- Drill Length Class
- Jobber-Length
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Smallest Drill Bit Size
- 1/16 in
- Largest Drill Bit Size
- 1/2 in
- Overall Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Size Range
- 1/16"-1/2"
- Wire Rope Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Description

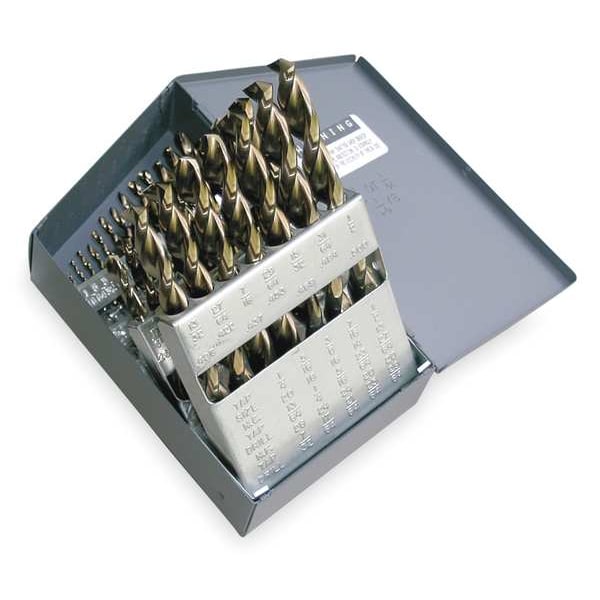

The CLE-LINE - C18622 is a jobber length drill bit set comprising 29 pieces with fractional inch sizes ranging from 1/16" to 1/2". Made from high speed steel (HSS), these right-hand spiral drill bits have split point tips with a 135° point angle; sizes and geometry are intended for use when machining aluminum, cast iron, and steel (use with appropriate speeds/feeds and workholding). The set includes drill bits of varying overall lengths from 1 7/8" up to 6" and comes housed in a metal index for storage and organization. The bits have straight shanks with a diameter of 1/6" and are made according to ASME B94.11M-1993 and DIN 338 standards.
Key Features:
- Number of drill bits: 29, with sizes incremented by 1/64" between 1/16" and 1/2".
- Material: Heavy duty high speed steel suitable for machining metals classified under ISO codes K, N, and P.
- Drill length class: Jobber length, providing standard reach for general drilling tasks.
- Point type: Split point with 135 degrees angle; has a split point design with a 135° point angle.
- Flute design: 2-flute parabolic flute design; helix angles range from 35° to 45°.
- Shank type: Straight, 1/6" diameter, shank diameter: 1/6" (compatible with drill chucks that accept 1/6" straight shanks).
- Spiral direction: Right hand cutting orientation.
- Includes a metal drill index case for organized bit storage.
