21PC 135 Degree Heavy-Duty Parabolic Jobber Length Drill Set Cle-Line 1872-TN TiN HSS RHS/RHC 1/16-3/8

  • Mfr # C18702
  • Zoro # G4954525
product price:
$
119.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
21
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Depth:Dia. Ratio
8xD
Drill Bit Grouping
Drill Bit Set
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C18702
Zoro #
G4954525
UPC #
697334187028
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
8xD
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/16 in to 3/8 in by 64ths
Depth x Dia. Ratio
8xD
Drill Bit Sizes Included
1/16 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/64 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
Largest Drill Bit Size
3/8 in
Smallest Drill Bit Size
1/16 in
Overall Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in
Drill Length Class
Jobber-Length
Wire Rope Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in
Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
21
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Grouping
Drill Bit Set
Standards
ASME B94.11M, DIN 338
List Number
1872-TN
Coolant Fed
Non-Coolant Through
Finish - Machining
TiN
Drill Bit Point Type
Split Point
Measurement System
Fractional Inch
Number of Drill Bits
21
Primary Material Application ISO Code
K, N, P
Number of Flutes
2
Flute Type
Parabolic
Spiral Direction
Right Hand
Shank Type - Machining
Straight
Material - Machining
High Speed Steel
Primary Material Application
Aluminum, Cast Iron, Steel
Material Grade - Machining
Heavy Duty
Helix Angle - Maximum
45 Degrees
Drill Bit Case Type
Metal Index
Helix Angle - Minimum
35 Degrees

Description

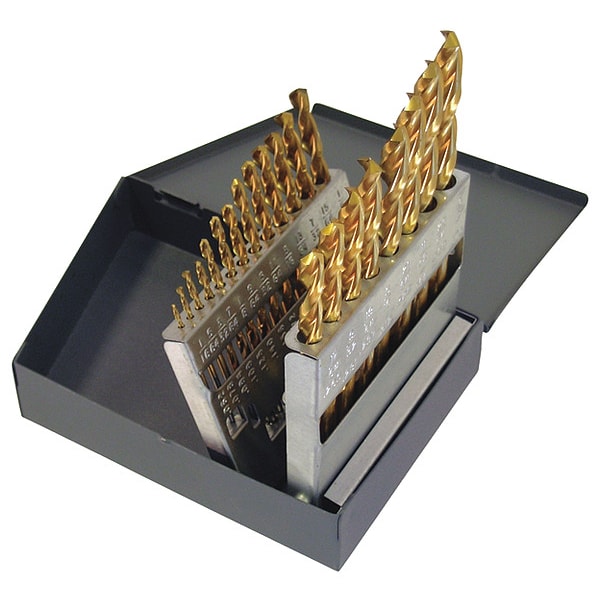

The CLE-LINE C18702 Jobber Length Drill Bit Set includes 21 fractional inch-size drill bits ranging from 1/16 in to 3/8 in. These bits are made of high speed steel with a Titanium Nitride (TiN) finish. Featuring a straight shank and right-hand spiral direction, this set is compatible for drilling in aluminum, cast iron, and steel (ISO codes K, N, P). Each drill bit has a split point with a 135-degree angle. The set is supplied in a metal index case for organized storage.

Key Features:

  • Drill bit sizes from 1/16 in to 3/8 in by 64ths, total of 21 pieces.
  • Overall lengths range from approximately 1 7/8 in to 4 in.
  • Two-flute, parabolic flute type; helix angles between 35 and 45 degrees.
  • High speed steel construction with Titanium Nitride (TiN) finish.
  • Right-hand spiral direction and split point tip at 135 degrees.
  • Compatible for drilling in aluminum, cast iron, and steel (ISO codes K, N, P).
  • Non-coolant through; use external coolant when drilling requires coolant.
  • Meets ASME B94.11M and DIN 338 dimensional/specification standards.
