21PC NAS907 Type C Heavy-Duty Screw Machine Dril Set Cleveland 2330 Bright HSS RHS/RHC 1/16-3/8x1/64
Mfr # C70369
Zoro # G3006110
product price:
$
106.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
0
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C70369
- Zoro #
- G3006110
- UPC #
- 697334703693
- Country of Origin
- United States
Dimensions
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8"
- Drill Bit Dimension Type
- Fractional Inch
- Overall Length
- 1.625", 1.688", 1.750", 1.813", 1.875", 1.938", 2.063", 2.125", 2.188", 2.250", 2.375", 2.438", 2.500", 2.625", 2.688", 2.750", 2.813", 2.938", 3.000", 3.063", 3.125"
- Drill Bit Size
- 1/16 in to 3/8 in by 64ths
- Shank Dia.
- 1/16 in-3/8 in
- Shank Size
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8"
- Drilling Length
- 0.625", 0.688", 0.750", 0.813", 0.875", 0.938", 1.000", 1.063", 1.125", 1.188", 1.250", 1.313", 1.375", 1.438", 1.500", 1.563", 1.625", 1.688", 1.688", 1.750", 1.813"
- Depth x Dia. Ratio
- 4xD
- Depth:Dia. Ratio
- 4xD
- Drill Length Class
- Screw-Machine Length
- Smallest Drill Bit Size
- 1/16 in
- Largest Drill Bit Size
- 3/8 in
- Drill Bit Sizes Included
- 1/16 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/64 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
- Diameter
- 1/16 in, 5/64 in, 3/32 in, 7/64 in, 1/8 in, 9/64 in, 5/32 in, 11/64 in, 3/16 in, 13/64 in, 7/32 in, 15/64 in, 1/4 in, 17/64 in, 9/32 in, 19/64 in, 5/16 in, 21/64 in, 11/32 in, 23/64 in, 3/8 in
Description

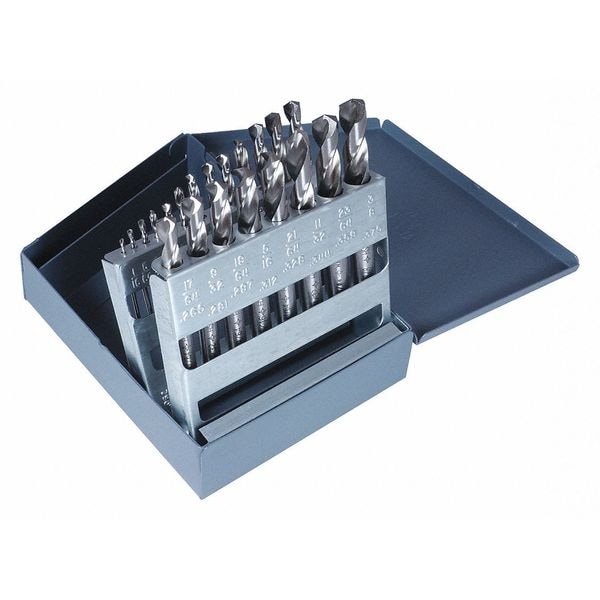

The CLEVELAND C70369 Screw Machine Drill Bit Set includes 21 fractional inch drill bits ranging from 1/16 inch to 3/8 inch in diameter. Made from heavy-duty high speed steel, these drill bits feature a split point tip with a 135-degree angle and spiral flutes for right-hand cutting. The set is manufactured to NAS 907 Type C specifications and is intended for drilling the following metallic materials: austenitic stainless steel, aluminum, carbon steel, die steel, iron-based alloys, and tool steel. The bits have a screw-machine length and are bright (uncoated) finished, provided in a metal drill index case for organized storage.
Key Features:
- Number of drill bits: 21 with sizes from 1/16" to 3/8" by 64ths.
- Drill bit material: Heavy-duty high speed steel.
- Point type: Split point with a 135° angle for improved centering and reduced walking.
- Flute type: Spiral with helix angles between 21° and 34°.
- Shank type and shape: Straight shank ranging from 1/16" to 3/8" in diameter.
- Drill length class: Screw-machine length, with drilling lengths from 0.625" up to 1.813".
- Application: Suitable for drilling metallic materials within the materials listed in the description
- Includes a metal index case for bit organization.
- Cutting direction: Right hand.
- Depth-to-diameter ratio: 4x diameter.
- Measurement system: Fractional inch.
