29PC CLE-MAX Jobber Length Drill Set Cleveland 2002G Bright HSS RHS/RHC 1/16-1/2x1/64
Mfr # C72198
Zoro # G0996970
Key Features
Specifications
Product Information
- MFR #
- C72198
- Zoro #
- G0996970
- UPC #
- 697334721987
- Country of Origin
- United States
Dimensions
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Sizes Included
- 1/16",5/64",3/32",7/64",1/8",9/64",5/32",11/64",3/16",13/64",7/32",15/64",1/4",17/64",9/32",19/64",5/16",21/64",11/32",23/64",3/8",25/64",13/32",27/64",7/16",29/64",15/32",31/64",1/2"
- Drill Bit Dimension Type
- Fractional Inch
- Shank Dia.
- 1/16 in
- Depth x Dia. Ratio
- 4xD
- Size Range
- 1/16"-1/2"
- Depth:Dia. Ratio
- 4xD
- Largest Drill Bit Size
- 1/2 in
- Smallest Drill Bit Size
- 1/16 in
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
- Drill Length Class
- Jobber-Length
- Overall Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Description

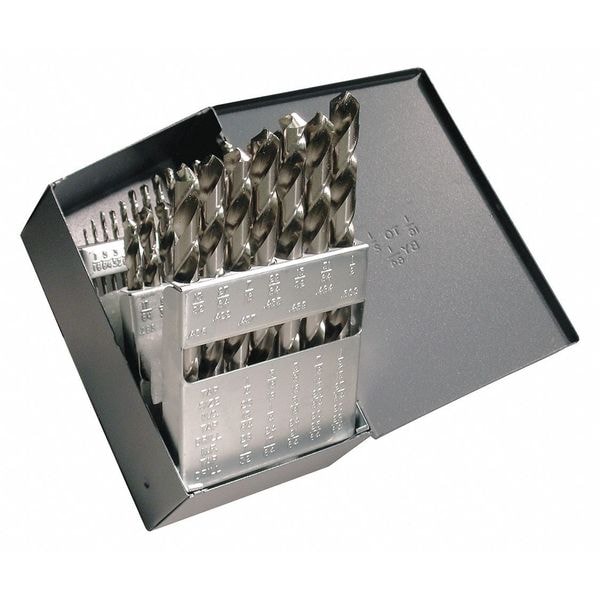

The CLEVELAND - C72198 is a jobber length drill bit set consisting of 29 fractional inch drill bits ranging in size from 1/16" to 1/2". Manufactured from high speed steel with a general-purpose machining grade, these drill bits have a right-hand spiral (right-hand cutting) flute direction and a conventional 118-degree radial point. The drill bits are intended for use on ISO application codes K, N, and P (aluminum, cast iron, and steel), as specified for this product. The set is housed in a metal drill index for organization and transport/storage convenience. The drill bits have a bright (uncoated) finish and straight shanks sized to match the drill size for compatibility with drill chucks that accept the specified shank diameter.
Key Features:
- Number of drill bits: 29, covering sizes from 1/16" to 1/2" by 64ths.
- Drill bit length varies from 1 7/8" to 6" depending on size.
- Material: High speed steel, general purpose grade.
- Flute type: 2-flute spiral with right-hand cutting direction.
- Point type: 118° conventional radial point for versatility.
- Shank type: Straight with a diameter matching the drill size starting at 1/16".
- Drill bit classification: Jobber length.
- Measurement system: Fractional inch.
- Compatible with ISO application codes K, N, and P corresponding to aluminum, cast iron, and steel.
- Includes a metal drill index for storage and organization.
- Meets standards ASME B94.11M-1993 and DIN 338.
