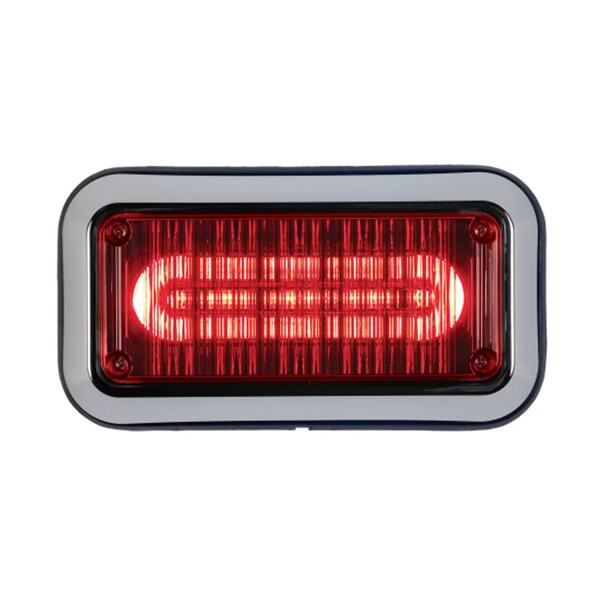

Perimeter Light, LED, Red, Surface, Rect, 6In

  • Mfr # 3712RBZ-75

  • Zoro # G3823766


product price: $298.99
/ea
Free Shipping & Returns

Key Features

Color
Red
Features
Synchronization Between Multiple Light Heads
Includes
Bezel, Pigtail
Number of Flash Patterns - Vehicle Lighting
30
Height - Vehicle Lighting
7 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3712RBZ-75
Zoro #
G3823766
UPC #
-
Country of Origin
United States

Dimensions

Height - Vehicle Lighting
7 in
Height
1-1/2"
Length - Vehicle Lighting
3 in
Width - Vehicle Lighting
1 1/2 in
Width
4-3/4"
Length
6"
Overall Height
5 in
Overall Depth
1 5/8 in
Overall Length
9 3/16 in

Details

Item
Perimeter Light
Color
Red
Features
Synchronization Between Multiple Light Heads
Includes
Bezel, Pigtail
Number of Flash Patterns - Vehicle Lighting
30
Flash Type
Selectable Patterns
Mounting - Vehicle Lighting
Permanent
Power Source
Corded
Lens Color - Vehicle Lighting
Red
Wide Range - Vehicle Lighting
Perimeter Light
Number of Heads
1
Lens Design
Rectangular
Lamp Type
Led
Wiring Connection - Vehicle Lighting
Pigtail
Voltage - Vehicle Lighting
12V DC
Mounting
Surface
Standards
CA T13, KKK-A 1822F, NFPA
Current Drawn
0.7 A
Sub-Category
Single Function Lights
Lighting Technology - Vehicle Lighting
LED
Beam Angle - Vehicle Lighting
180 Degrees
Housing Material
Plastic
Lens Material
Polycarbonate
Base Material
Plastic
Flashes per Minute
75 to 150
Voltage
12V DC
Lens Color
Red
Material
polycarbonate
Lighting Technology
LED
Number of Flash Patterns
30
Number of Bulbs
12
Shape
Rectangular
SAE Class Rating
SAE J595 Class 1
Installation Location
Bumper, Grille, Hood, Side Mirror
Electrical Connection
Pigtail
Compatible Vehicle Type
Universal
Vehicle Class
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Light Pattern
Flashing
Mount Style
Surface
Manufacturer Warranty
5 yr
Mount Type
Bolt
Light Color
Red
Installation Type
Permanent
Wire Exit
Bottom
Current
0.7 A
Wattage
8.4 W
Light Type
Emergency Vehicle Perimeter Light
IP Rating
IP65
Series
PriZm II Series
Operating Voltage
12V DC

Description

Perimeter Light, Light Type Emergency Vehicle Perimeter Light, Light Color Red, Wattage 8.4 W, Lens Color Red, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J595 Class 1, Electrical Connection Pigtail, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12V DC, Overall Length 9 3/16 in, Overall Diameter Not Applicable, Overall Height 5 in, Overall Depth 1 5/8 in, IP Rating IP65, Compatible Vehicle Type Universal, Number of Heads 1
