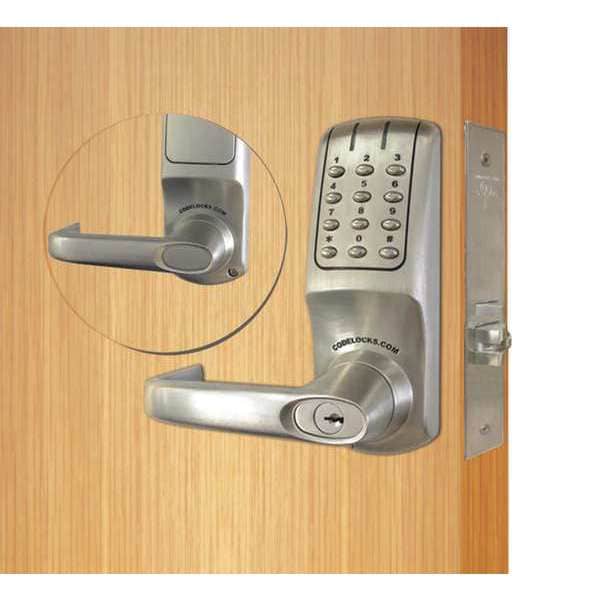

Codelocks Electronic Key Lock, (4)AA CL5250-BS - main

Electronic Key Lock, (4)AA

  • Mfr # CL5250-BS

  • Zoro # G5755438

product price: $637.99
/ea
Free Shipping & Returns

Key Features

Handle Type
Lever
Function
Classroom or Store Room with Key Override
Key Override Options
Interchangeable Core
Hand
Right or Left
Finish
Brushed Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CL5250-BS
Zoro #
G5755438
UPC #
817083020418
Country of Origin
China

Dimensions

Door Thickness
1-3/8 in to 2-1/2 in
Latch Length
2-3/4 in
Outside Width
2 3/4 in
Outside Height
7 3/4 in
Inside Height
7 3/4 in
Latch Front Size
1-1/8 in x 2-1/4 in
Inside Width
2 3/4 in
Overall Height
7 3/4 in
Overall Width
2 3/4 in
Door Thickness - Maximum
2 3/8 in
Strike Base Height
8 in
Latch Front Width
1 1/8 in
Latch Front Length
2 1/4 in
Strike Base Width
1 in
Door Thickness - Minimum
1 3/8 in

Details

Item
Electronic Keyless Lock
Handle Type
Lever
Function
Classroom or Store Room with Key Override
Key Override Options
Interchangeable Core
Hand
Right or Left
Finish
Brushed Steel
Backset
2 3/4 in
Electrical/Mechanical
Electrical
Product Type
Electronic Keyless Lock
Lockset Function
Offices/Schools/Warehouses/Hospitals/Care Homes/Nurseries/Hotels/Leisure Facilities/The Home
Case Material
Zinc
Grade
2
Weather Resistant
Yes
Max. User Codes
80
Series
CL5000
Number of Keys
0
Fire Rating
3 hr
IP Rating
Not Rated
Lock Material
Zinc Alloy
Battery Life
200,000 Cycles
For Use With
Interior/Exterior Door
Includes
Tubular Mortise Latch Back to Back
NEMA Rating
Weather Resistance per Comprehensive ANSI A156.13 and A156.25 (Rain, Dust, Temperature, Humidity, Salt Spray)
Mounting Style
Vertical
Access Method
Keypad
Event Audit Trail
No
Max. Proximity Range
At Lock
Timed Entry Allowance
5 sec
Network Interface
None
Standards
ANSI
ADA Compliant
Yes
Power Source
(8) AA Batteries
Keypad Material
Stainless Steel
ANSI Grade
1
Operation Type
Push Button
Lockset Type
Electrical
Locking/Unlocking Access - Outside
Thumb Turn
Cylinder Core Type
Conventional Core Cylinder
Lockset Handle Type
Lever
ANSI/BHMA Finish
Zinc-Plated
Failure Mode
Fail Safe or Fail Secure
Strike Type
Mortise
Includes Core
Core Included
Lockset Material
Zinc Alloy
User Codes - Maximum
80
Hand Orientation
Non-Handed
Includes Hardware
Hardware Included
Locking/Unlocking Access - Inside
Push Button

Description

Electronic Keyless Lock, Function Classroom or Store Room with Key Override, Access Method Keypad, Mounting Style Vertical, Lock Material Zinc Alloy, Finish Brushed Steel, Series CL5000, Handle Type Lever, Door Thickness 1-3/8 in to 2-1/2 in, Key Override Options Interchangeable Core, Hand Right or Left, Network Interface None, Outside Height 7 3/4 in, Outside Width 2 3/4 in, Keypad Material Stainless Steel, Power Source (8) AA Batteries, Battery Life 200,000 Cycles, Max. User Codes 80
