Colder

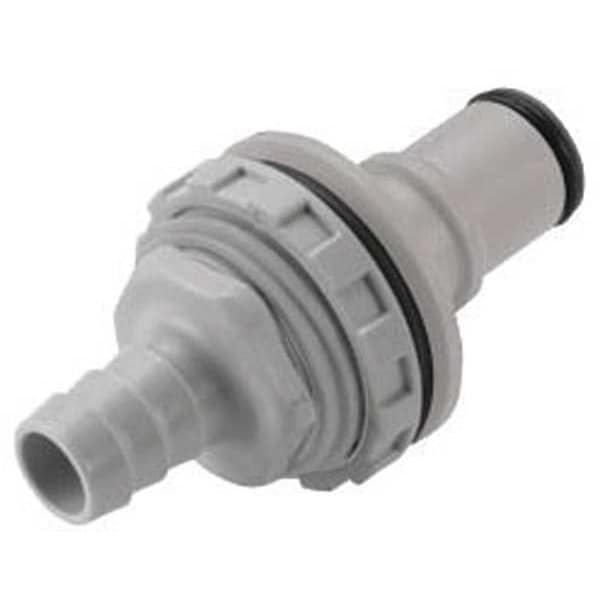

3/8" Barbed Panel Mount Insert

product price: $38.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Polypropylene
  • Specific Fitting Shape Panel Mount Insert
  • Fitting Connection Type Barbed
  • Pipe Size - Pipe Fitting 3/8 in
  • Series NS212
See all product information

Product Information

Dimensions

Pipe Size - Pipe Fitting 3/8 in
Pipe Size (Fittings) 3/8"
Length 2.85 in
Tube Inside Dia. 3/8 in
Body Dia. 1.5 in
Fitting Side A Tube Inner Diameter 3/8 in
Overall Length 2 27/32 in

Details

Item Panel Mount Insert
Tube Fitting Material Polypropylene
Specific Fitting Shape Panel Mount Insert
Fitting Connection Type Barbed
Series NS212
Standards NSF/ANSI 51, NSF/ANSI 61, RoHS
Specific Pipe Fitting Shape Insert
Straight-Through/Shut-Off Shut-Off
Color Gray
Max. Pressure 120 psi
For Use With NS6 Couplers
Basic Pipe Fitting Material Plastic
Temp. Range 32 Degrees to 160 Degrees F
Pipe Fitting Connection Type Barbed
Basic Pipe Fitting Shape Insert
Maximum Operating Pressure 120 psi
Fitting Material Polypropylene
Minimum Operating Temperature 32 Degrees F
Resistance Properties Chemical-Resistant
Fitting Side A Connection Type Barbed
Maximum Operating Temperature 160 Degrees F
Flow Control Type Shut-off
Fitting Side B Connection Type Insert
Application Air, Non-Potable Water

Description

Panel Mount Insert, Application Air, Non-Potable Water, Fitting Side A Connection Type Barbed, Fitting Side B Connection Type Insert, Fitting Side A Tube Inner Diameter 3/8 in, Flow Control Type Shut-off, Fitting Material Polypropylene, Overall Length 2 27/32 in, Specific Fitting Shape Panel Mount Insert, Standards NSF/ANSI 51, NSF/ANSI 61, RoHS, Color Gray, Maximum Operating Pressure 120 psi, Maximum Operating Temperature 160 Degrees F, Minimum Operating Temperature 32 Degrees F
