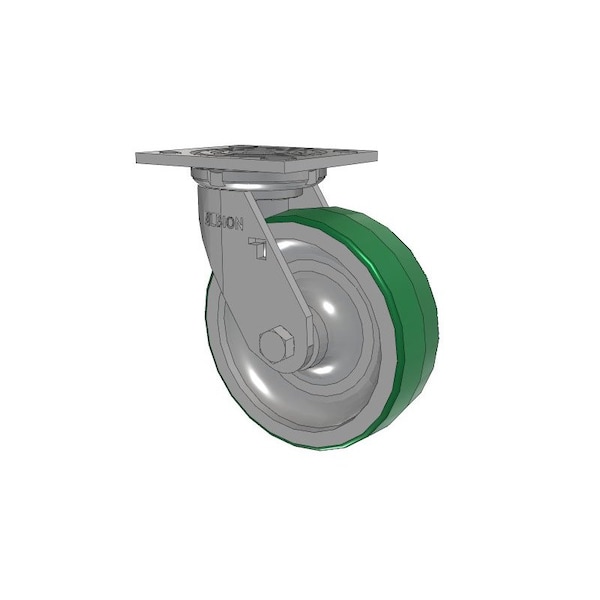

6" X 2" Non-Marking Polyurethane Swivel Caster, No Brake, Loads Up To 1230 lb

  • Mfr # 16PD06201S
  • Zoro # G1290037
product price:
$
85.15
/ea

Key Features

Number of Wheels
1
Wheel Color
Green
Core Color
Silver
Caster Sub-Type
Swivel
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16PD06201S
Zoro #
G1290037
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Stem Dia.
No Stem
Overall Height
7-1/4"
Mounting Plate Size
4in x 4-1/2in
Mounting Height
7 1/4 in
Mounting Plate Thickness
1/4 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
3.625 in

Details

Number of Wheels
1
Wheel Color
Green
Item
Plate Caster
Core Color
Silver
Caster Sub-Type
Swivel
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Thread Guards
No
Load Rating
1230 lb
Extended Lead
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
NSF Listed
Caster Brake Included
No
Caster Frame Material
Aluminum
Replacement Wheel
Mfr. No. PD0620112
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
No Brake
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Bearing Type
Roller
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Aluminum
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Load Capacity - Maximum
1,230 lb
Compatible With
PD0620112
Wheel Hardness Rating
60 Shore D
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Grease, Steel, Tile
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 1230 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
