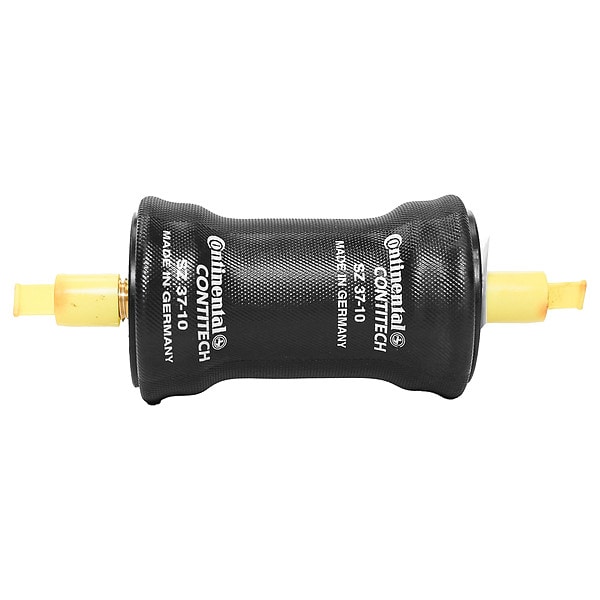

SZ 37-10 P02 1/8 NPT X 2
Mfr # SZ 37-10 P02 1/8 NPT X 2
Zoro # G611208090
product price:Â $101.99
/ea
Free Shipping & Returns
Key Features
Height - Compressed
3 in
Compressed Diameter - Maximum
3.94 in
Mounting Plate Diameter - Bottom
2.4 in
Air Inlet Thread Size
1/8 in
Operating Temperature - Maximum
158 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SZ 37-10 P02 1/8 NPT X 2
- Zoro #
- G611208090
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Height - Compressed
- 3 in
- Compressed Diameter - Maximum
- 3.94 in
- Mounting Plate Diameter - Bottom
- 2.4 in
- Air Inlet Thread Size
- 1/8 in
- Mounting Plate Diameter - Top
- 2.4 in
- Height - Full Stroke
- 6 in
Details
- Operating Temperature - Maximum
- 158 Degrees F
- Installation Space Required
- 4.72 in
- Item
- Sleeve Type Air Actuator
- Air Spring Material
- Natural Rubber
- Operating Temperature - Minimum
- -76 Degrees F
- Operating Pressure - Minimum
- 40 psi
- Maximum Dynamic Load Capacity
- 244 lbf @ 40 psi, 371 lbf @ 60 psi, 501 lbf @ 80 psi, 629 lbf @ 100 psi, 763 lbf @ 120 psi
- Number of Mounting Holess
- 1
- Air Spring Type
- Sleeve
- Air Inlet Thread Type
- NPT
- Air Inlet Location
- Center
- Operating Pressure - Maximum
- 120 psi
- System of Measurement
- SAE
Description
Sleeve Type Air Actuator, Air Inlet Location Center, Air Inlet Thread Size 1/8 in, Air Inlet Thread Type NPT, Air Spring Material Natural Rubber, Air Spring Type Sleeve, Compressed Diameter - Maximum 3.94 in, Height - Compressed 3 in, Height - Full Stroke 6 in, Installation Space Required 4.72 in, Maximum Dynamic Load Capacity 244 lbf @ 40 psi, 371 lbf @ 60 psi, 501 lbf @ 80 psi, 629 lbf @ 100 psi, 763 lbf @ 120 psi, Mounting Plate Diameter - Bottom 2.4 in, Mounting Plate Diameter - Top 2.4 in
