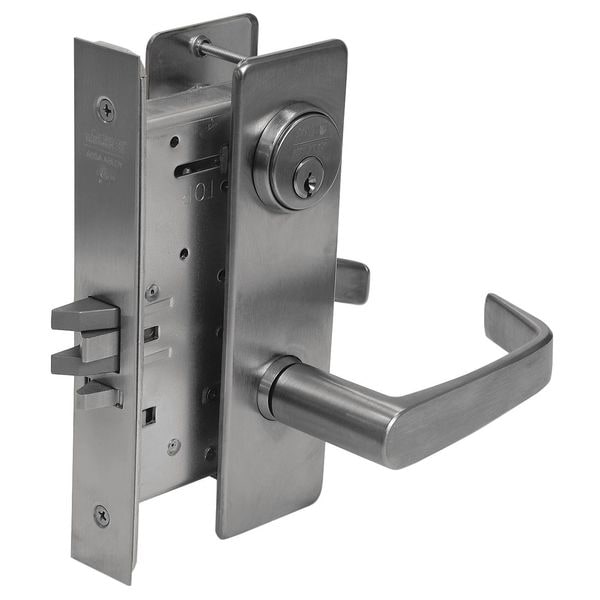

Corbin Russwin Lever Lockset, Mechanical, Classroom ML2052 NSM 626 - main

Lever Lockset, Mechanical, Classroom

  • Mfr # ML2052 NSM 626

  • Zoro # G4554532

product price: $901.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom Security
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ML2052 NSM 626
Zoro #
G4554532
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
4 in
Strike Plate Thickness
1 1/4 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom Security
Lockset Grade
1
Style
ML2001 Newport
Lockset Finish
Satin Chrome
Keyway Type
L4
Key Type
Keyed Different
Includes
Inside and Outside Keyed Cylinders
ADA Compliant
Yes
Lockset Fire Rating
3 hr
Strike Dim.
1-1/4 in x 4-7/8 in
Location Type
School
Mortise/Cylindrical
Mortise
Key Material
Nickel Silver
Backset
2 3/4 in
Strike Type
Straight Lip
Number of Keys
2
Item
Door Lockset
Ligature Resistant
No
Standards
ANSI/BHMA A156.13, ASTM E330, cUL Listed, EPD, UL Listed
Series
ML2001
Keying
Keyed Different
Number of Pins
6
Finish
Satin Chrome
Grade
1
Fire Rated
3 hr.
Features
Integrates with Access Control Platforms
Type
Mortise
Cylinder Core Type
Conventional Core Cylinder
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Visual Indicator Message
No Message
Material
Heavy Guage Steel, Stainless Steel, Brass, Bronze
Handle Type
Lever
Case Material
Heavy Gauge Chrome Plated Steel
Pins
6
Function
Classroom Intruder
Strike
ANSI 4-7/8 x 1-1/4" Curved Lip
Cylinder
Yes
Fire Rating
3 hr
Knob/Handle Material
Steel
ANSI Grade
1
Lockset Type
Mechanical
Application
Commercial
Latch Bolt/Dead Bolt
Latch Bolt
Locking/Unlocking Access - Inside
Keyway
UL Fire Rating
UL10C
Lockset Style
NSM Lever
ANSI/BHMA Finish
Satin Chromium-Plated
Performance Grade
1
Hand Orientation
Non-Handed
Lockset Function ANSI Code
F32
Ligature-Resistant
Not Ligature-Resistant
Locking/Unlocking Access - Outside
Keyway
Includes Core
Core Included
Trim Plate Shape
Rectangular

Description

Lever Lockset, Mortise, Institutional, Healthcare, Schools, ML2001 Series, Right Angle, Flat, Escutcheon Style, Satin Chrome Finish, Function Classroom Intruder, Keyway Type L4, Grade 1, Material Heavy Guage Steel, Stainless Steel, Brass, Bronze, For Door Thickness 1-3/4 In., Backset 2-3/4 In., Front Size Dimension 8 x 1-1/4 In., Key Type Nickel Silver, Number of Keys 2, Pins 6, ANSI 4-7/8 x 1-1/4 In. Curved Lip Strike, Cylinder Yes, No Deadbolt, Keying Different
