Coxreels

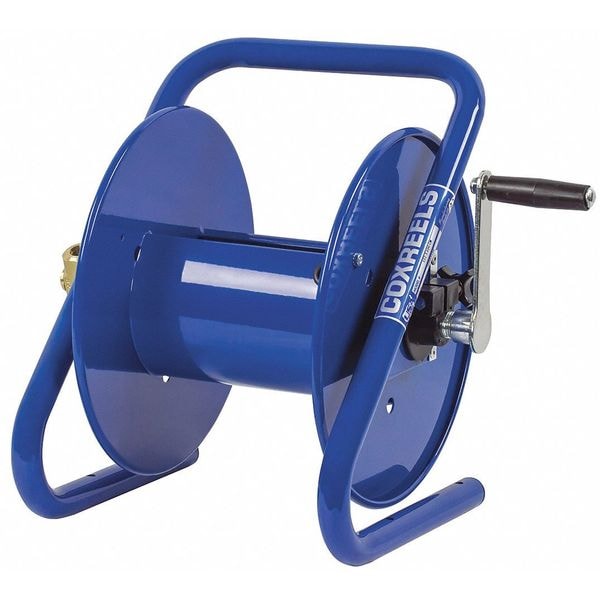

Hand Crank Hose Reel, 3/8x100

product price: $252.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hose Included No
  • Hose Length 100 ft
  • Hose Inside Dia. 3/8 in
  • Reel Inlet 3/8 in (F)NPT
  • Hose Outlet 3/8 in (M)NPT
See all product information

Product Information

Dimensions

Hose Length 100 ft
Hose Inside Dia. 3/8 in
Overall Height 14 3/4 in
Overall Length 13 1/8 in
Hose Outside Dia. 5/8 in
Overall Width 18 1/2 in
Mount Base Height 10 5/8 in
Swivel Outlet Size 3/8 in
Swivel Inlet Thread Size 3/8 in
Swivel Inlet Size 3/8 in
Overall Dimensions 13 1/8 in L x 18 1/2 in W x 14 3/4 in H
Handle Length 3 1/2 in
Reel Width 8 in
Reel Diameter 5 1/2 in
Mounting Hole Center to Center Height 3 in
Mount Base Width 11 1/2 in
Swivel Outlet Thread Size 3/8 in

Details

Hose Included No
Reel Inlet 3/8 in (F)NPT
Hose Outlet 3/8 in (M)NPT
Finish Powder Coated
Duty Rating Medium Duty
Drive Type Hand Crank
Item Hand Crank Hose Reel
Max. Pressure Rating 4000 psi
Application Air, Water, Oil, Washdown, Pressure Washing, Agricultural Spraying, Chemical Fluid Transfer
Seal Type Nitrile
HP None
Swivel Material Brass
Color Blue
Bearings EPDM Bearings
Housing Material Steel
Hose Ends 3/8 in (M)NPT
Swivel Outlet Gender Female
Features "U" Shaped Frame Design, Adjustable Tension Brake, CNC Spun Discs, Heavy Duty Steel Construction, Lightweight
Swivel Outlet Type NPT
Enclosed No
Swivel Inlet Type NPT
For Dual Hose No
Seal Material Nitrile
Includes Hose No
Maximum Operating Temperature 225 Degrees F
Bearing Construction EPDM
Base Motion Type Stationary
Minimum Operating Temperature -40 Degrees F
Reel Material Steel
Swivel Inlet Gender Female
Hose Reel Type Caddy Mount Hose Reel
Standards CE
Fasteners Included No
Number of Mount Holes 4
Hose Reel Primary Application Air, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water
Maximum Operating Pressure 4,000 psi
Weight 18 lb
Reel Color Blue
Includes Leader Hose No
Hose Capacity 100 ft (3/8 in I.D.)
Reel Finish Powder Coated
Includes Gooseneck No

Description

Hand Crank Hose Reel, Air, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water, Hose Capacity 100 ft (3/8 in I.D.), 4,000 psi, Overall Height 14 3/4 in, Overall Length 13 1/8 in, Overall Width 18 1/2 in, Reel Material Steel, Reel Finish Powder Coated, Drive Type Hand Crank, Enclosed No, Includes Hose No, Mounting Location Cart, Reel Color Blue, Includes Gooseneck No, Hose Reel Type Caddy Mount Hose Reel, Swivel Material Brass, Swivel Outlet Gender Female
