Shop CRAFTSMAN

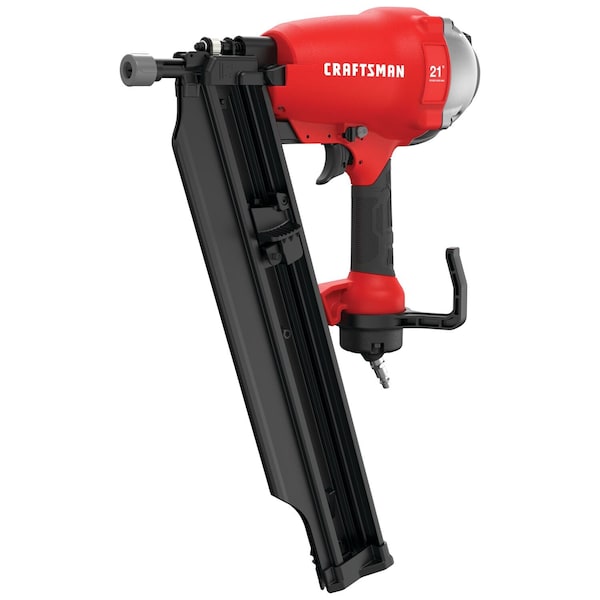

Plastic Framing Nailer, 21 degree

  • Mfr # CMP21PL

  • Zoro # G104104366

product price:
$
219.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Air Inlet
1/4 in NPT
Features
ACTUATION MODE: Selectable trigger with lockout for sequential or contact actuation mode, POWERFUL FULL RANGE: Power to drive full range of nails up to 3-1/2-in x .148-in into engineered lumber, PROPER ADJUSTMENT: Tool-free depth-of-drive adjustment for proper setting of nail heads
Includes
CMP21PL 21 degree Framing Nailer (1), 1/4-in. Air Fitting (1), Hex Wrench (1)
Firing Mode
Sequential
Tool Weight
8.25 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CMP21PL
Zoro #
G104104366
UPC #
885911551267
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
13 in
Height
14.76
Width
4.72
Depth Control
Yes
Length
21.65
Overall Length
21 5/8 in
Overall Width
5 13/16 in
Min. Hose Size
1/4 in
For Nail Shank Diameter
0.113 in to 0.148 in
For Nail Penny Size
16d
For Nail Length Range
2 in to 3 1/2 in
For Nail Shank Diameter - Maximum
0.148 in
For Nail Length - Maximum
3 1/2 in
Air Inlet Connection Size
1/4 in
For Nail Shank Diameter - Minimum
0.113 in
For Nail Length - Minimum
2 in
Hose Size - Minimum
1/4 in
Wire Rope Length
21 5/8 in

Details

Item
Nail Gun
Air Inlet
1/4 in NPT
Features
ACTUATION MODE: Selectable trigger with lockout for sequential or contact actuation mode, POWERFUL FULL RANGE: Power to drive full range of nails up to 3-1/2-in x .148-in into engineered lumber, PROPER ADJUSTMENT: Tool-free depth-of-drive adjustment for proper setting of nail heads
Includes
CMP21PL 21 degree Framing Nailer (1), 1/4-in. Air Fitting (1), Hex Wrench (1)
Firing Mode
Sequential
Tool Weight
8.25 lb
Magazine Capacity
60
Nail Capacity
60
Handle Type
Pistol-Grip
Collation Type
Plastic
Housing Material
Alumnium
Tip
No-Mar and Profile
Standards
ANSI
Pressure Range
70-120
For Nail Head Style
Standard Round
Collation Angle
21 Degrees
Max. Air Pressure
120 psi
Air Pressure Range
70 to 120 psi
Exhaust Location
Top
Duty Rating
General Duty
Built-In Light
No
Air Consumption
9.75 cfm
Nail Gun Type
Framing
Power Source
Air-Powered
Air Pressure
120 psi
Collation Style
Strip
Min. Air Pressure
70 psi
Color
Red
Style
Framing Nailer
Air Pressure - Maximum
120 psi
Head Style
Full Round
Flow per Shot
9.75 cfm
Air Pressure - Minimum
70 psi
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Nail Gun, Power Source Air-Powered, Air Consumption 9.75 cfm, Air Inlet 1/4 in NPT, Air Pressure 120 psi, Air Pressure Range 70 to 120 psi, Max. Air Pressure 120 psi, Min. Air Pressure 70 psi, Min. Hose Size 1/4 in, Exhaust Location Top, Tool Brand CRAFTSMAN, Series Not Applicable, Firing Mode Sequential, Tip No-Mar and Profile, Depth Control Yes, Max. Fastening Rate Not Applicable, Collation Style Strip, Collation Type Plastic, Collation Angle 21 Degrees , For Nail Gauge Not Applicable
