  11. Rotary Table, 0 to 190 Deg, 10mm Bore
Shop All Cylinder Position Sensors
Smc

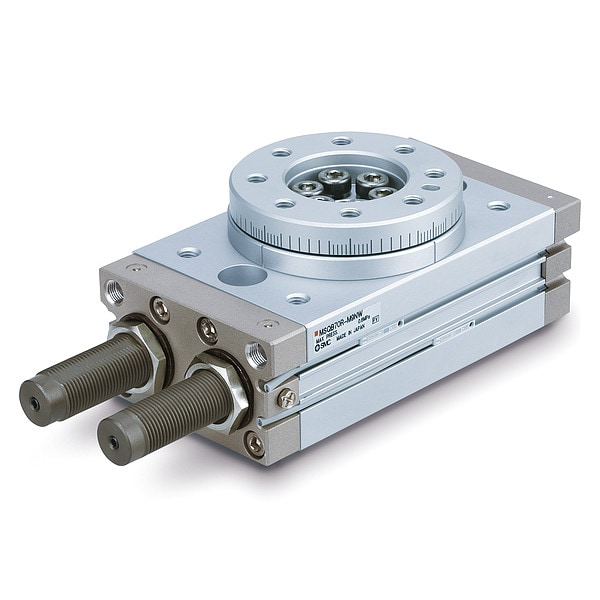

Rotary Table, 0 to 190 Deg, 10mm Bore

product price: $356.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Dimension B 55.4 mm
  • Length 109.7 mm
  • Bore 10 mm
  • Width 55.4 mm
  • Dimension C 34 mm
See all product information

Product Information

Dimensions

Dimension B 55.4 mm
Length 109.7 mm
Width 55.4 mm
Dimension C 34 mm
Port Size M5 x 0.8
Height 34 mm
Body Length 92 mm
Overall Height 47 mm
Inlet Size M5 x .8mm
Body Height 34 mm
Overall Width 55.4 mm
Bore Diameter 10 mm
Overall Length 109.7 mm

Details

Item High Precision Rotary Table
Bore 10 mm
Operating Temp. Range 32 Degrees to 140 Degrees F
Maximum Pressure 145 psi
Housing Material Anodized Aluminum
Powertrain Material Carbon Steel
Shaft Type Anodized Aluminum Table
Type Rack and Pinion
Rotation Angle (Deg.) 0 to 190
Cushion Type Rubber Bumper
Torque (In.-Lbs.) 11.06 in-lb/102 psi
Plate Material Aluminum Alloy
Seal Material NBR
Body Material Finish Anodized
Air Inlet Type Metric Standard
Maximum Operating Pressure 1 MPa
Allowable Kinetic Energy 0.01 J
Minimum Rotation Angle 52 Degrees
Maximum Operating Temperature 140 Degrees F
Maximum Rotation Angle 190 Degrees
Bearing Retainer Material Aluminum Alloy
Cover Material Aluminum Alloy
Bearing Retainer Material Finish Anodized
Table Material Aluminum Alloy
Maximum Output Torque 1.78 N-m
System of Measurement Metric
Minimum Operating Temperature 32 Degrees F
Plate Material Finish Chromate Coated
Pinion Material Steel Alloy
Minimum Operating Pressure 0.1 MPa
Cover Material Finish Plated
Body Material Aluminum Alloy
Weight 0.5 kg
Table Material Finish Anodized
End Cap Material Aluminum Alloy
Piston Material Stainless Steel

Description

High Precision Rotary Table, Bore Diameter 10 mm, Maximum Operating Pressure 1 MPa, Inlet Size M5 x .8mm, Air Inlet Type Metric Standard, Maximum Output Torque 1.78 N-m, Cushion Type Rubber Bumper, Table Material Finish Anodized, Body Material Finish Anodized, Minimum Rotation Angle 52 Degrees , Bearing Retainer Material Aluminum Alloy, Body Height 34 mm, Body Material Aluminum Alloy, Allowable Kinetic Energy 0.01 J, Maximum Rotation Angle 190 Degrees , Overall Length 109.7 mm
