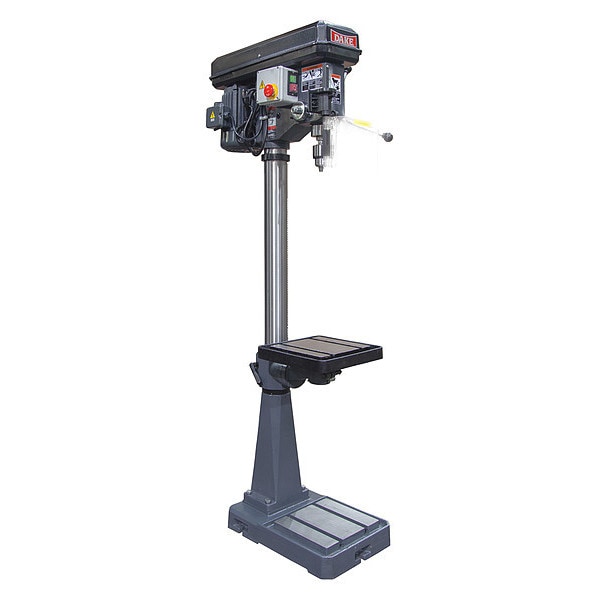

Floor Drill Press, Belt Drive, 2 hp, 115V AC V, 18 in Swing, 9 Speed

  • Mfr # 977600-1

  • Zoro # G5147222

product price:
$
3,272.99
/ea
Additional $285.00 delivery surcharge applies per item.
See details

Key Features

Drill Press Product Grouping
General Purpose Drill Presses
Drive Type
Belt
Swing
18 in
Voltage
120V AC
Motor HP
2 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
977600-1
Zoro #
G5147222
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
5/8 in
Overall Height
71 in
Overall Width
15 in
Base Size
23-5/8 in x 15 in
Table Slot Size
5/8 in
Quill Dia.
2 1/2 in
Column Dia.
3 5/8 in
Overall Depth
23 5/8 in
Column Diameter
3 5/8 in
Maximum Spindle-to-Base Height
49 1/4 in
Cord Length
70"
Quill Diameter
2 1/2 in
Base Length
15 in
Maximum Overall Height
71 in
Table Length
13 1/4 in
Maximum Spindle-to-Table Height
28 3/8 in
Table Width
13 3/4 in
Base Height
23 5/8 in

Details

Drill Press Product Grouping
General Purpose Drill Presses
Item
Floor Drill Press
Drive Type
Belt
Swing
18 in
Voltage
120V AC
Motor HP
2 hp
Number of Speeds
9
Capacity Steel
1 in
Spindle Speed
270 to 2000 rpm
Corded/Banded
Corded
Includes
Chuck Guard, Drift, HDPE Chip, Keyed Chuck
Hz
60
Drilling Capacity Wood
Not Specified
Table Work Surface
13-3/4 in x 13-3/4 in
Max. Spindle To Base
49 1/4 in
Corded/Cordless
Corded
Capacity Cast Iron
1 in
Number of T-Slots
2
Power Down Feed Included
No
Amps AC
14 A
Phase
Single-Phase
Spindle to Table
28 3/8 in
Spindle Taper
3MT
Spindle Travel
5 in
Application
General Purpose Drill Press
Radial Arm
No
Drilling Capacity in Wood
5/8 in
Number of Pieces
5
Current
14 A
Speed Control
Fixed
Table Shape
Square
Power Source
Corded
Guard Included
Yes
Drilling Capacity in Steel
5/8 in
Minimum Spindle Speed
270 RPM
Drill Press Application
Drilling
Coolant System
No
Chuck Style
Keyed
Number of Spindle Speeds
Variable
Spindle-to-Column Distance
7 1/16 in
Chuck Capacity
5/8 in
Primary Material Application
Metal, Wood
Speed Adjustment
Step Pulley
Horsepower
2 hp
Maximum Spindle Speed
2,000 RPM
Speed Range
270 to 2,000 RPM
Table Slot
Yes
Drill Press Type
Floor Stand

Description

Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 18 in, Spindle-to-Column Distance 7 1/16 in, Horsepower 2 hp, Voltage 120V AC, Spindle Taper 3MT, Number of Speeds 9, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 1/2 in, Drilling Capacity in Steel 5/8 in, Drilling Capacity in Wood 5/8 in
