  11. DC Speed Control, SCR, Enclosed, NEMA 4, 10A Max Current, 90/180V DC, ON/OFF, 50:1

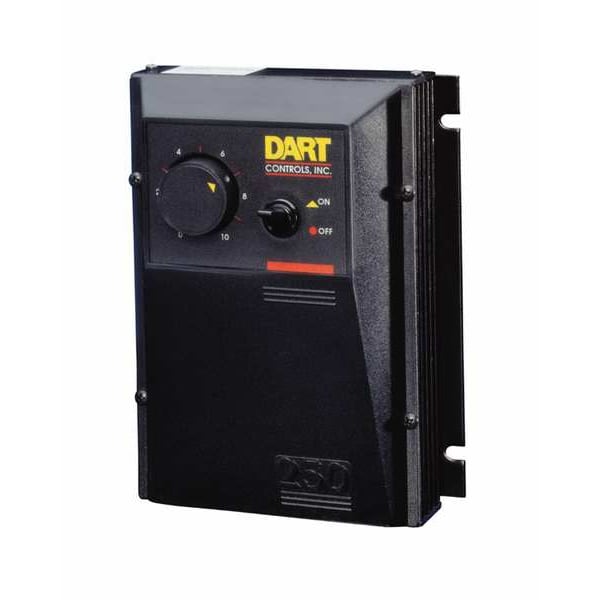

Dart Controls DC Speed Control, SCR, Enclosed, NEMA 4, 10A Max Current, 90/180V DC, ON/OFF, 50:1 253G-200E - main

DC Speed Control, SCR, Enclosed, NEMA 4, 10A Max Current, 90/180V DC, ON/OFF, 50:1

  • Mfr # 253G-200E

  • Zoro # G0297297

product price: $370.99
/ea
Free Shipping & Returns

Key Features

Enclosure
NEMA 4/12
Max. Amps
10 A
Voltage Output
90/180V DC
Speed Range
50:1
Rotation
Single Direction
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
253G-200E
Zoro #
G0297297
UPC #
-
Country of Origin
United States

Dimensions

Width
5.53 in
Depth
2.75 in
Height
7.25 in
Overall Depth
2.75 in
Overall Width
5.53 in
Overall Height
7.25 in

Details

Item
DC Speed Control
Enclosure
NEMA 4/12
Max. Amps
10 A
Voltage Output
90/180V DC
Speed Range
50:1
Rotation
Single Direction
External Switches
ON/OFF
AC Input Voltage
120/240V AC
DC Speed Control
SCR
HP @ Higher Volts
1/4 to 2
Accepts Tach Feedback
Yes
Mount Type
Surface
HP @ Lower Volts
1/8 to 1
Includes
Speed Potentiometer Knob, Dial Plate and On/Off Switch
Follower Circuit
No
For Use With
Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications
Speed Regulation
+/-0.5% with Tach Feedback, +/-1% with Armature Voltage Feedback
Shunt Wound Volts
100/200V DC
Operating Temp.
-10 Degrees to 45 Degrees C
Dynamic Braking
No
IR Compensation
Adjustable
Standards
cULus Listed, RoHS
Linear Acceleration
Adjustable 0.5 to 8 sec
Current/Torque Limit
Adjustable
Series
Series 253
Operating Temperature
-10 Degrees to 45 Degrees C
NEMA Rating
NEMA 4
Lower Voltage Motor Output Power
1/8 to 1 hp
Enclosure Rating
NEMA 4
Maximum Current
10 A
Maximum Linear Acceleration
8 sec
Minimum Linear Acceleration
0.5 sec
Shunt Wound Voltage
100/200V DC
Enclosure Type
Enclosed
Higher Voltage Motor Output Power
1/4 to 2 hp
Product Type
DC Speed Control
HP
1/8 to 1 @ 90 VDC, 1/4 to 2 @ 180 VDC

Description

DC Speed Control, DC Speed Control SCR, NEMA 4, Lower Voltage Motor Output Power 1/8 to 1 hp, AC Input Voltage 120/240V AC, Voltage Output 90/180V DC, Speed Range 50:1, Rotation Single Direction, External Switches ON/OFF
