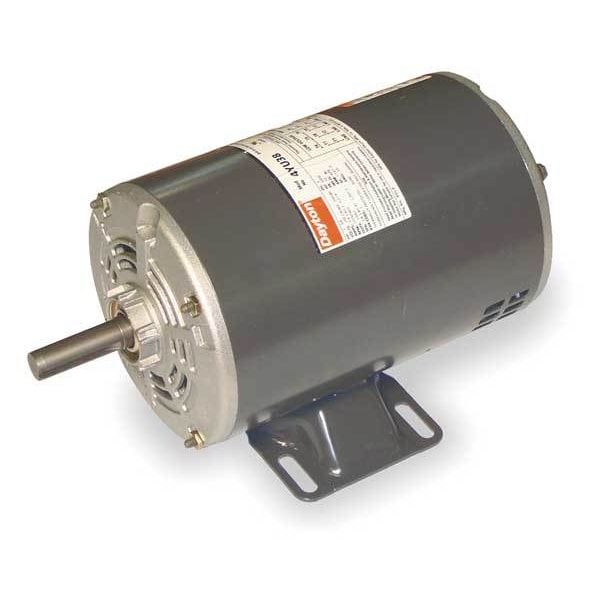

Motor, 3 Ph, 2 HP, 1725, 208-230/460, 56H, ODP

  • Mfr # 4YU40
  • Zoro # G2705525
product price:
$
528.99
/ea
Free Shipping & Returns

Key Features

HP
2
Motor Design
Three-Phase
Motor Bearings
Ball
Motor Sub Application
Direct Drive
Max. Ambient Temp.
40 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU40
Zoro #
G2705525
UPC #
190735339268
Country of Origin
United States

Dimensions

Length Less Shaft
10 1/16 in
Shaft Length
1 7/8 in
Body Dia.
6 1/2 in
Shaft Dia.
5/8 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Overall Length
12 3/8 in
Frame Size
56H
Wire Rope Length
12 3/8 in
Length
12 3/8 in

Details

HP
2
Motor Design
Three-Phase
Motor Bearings
Ball
Motor Sub Application
Direct Drive
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Rigid Base
Motor Application
HVAC/R
Ins. Class
B
Phase
Three
Full Load Amps
6.2-6.2/3.1 A
Motor Thermal Protection
None
Nameplate RPM
1,770 RPM
Motor Enclosure Design
Open Dripproof
Motor Service Factor
1.15
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Keyed
Hz
60 Hz
Standards
CSA Certified, UL Recognized
RPM Range
1,701-1,800
No. of Speeds
1
Duty
Continuous
Motor Mounting Position
All Angle
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Item
Fan and Blower Motor
Capacitor Required
Capacitor Not Required
Frame
56H
Stud Quantity
4
Duty Cycle
Continuous
Number of Shafts
1
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Mounting
Rigid Base
Full Load Current @ 60 Hz
6.2-6.2/3.1 A
Product Type
Fan and Blower Motor
Bearing Type
Ball
Frame Material
Steel
Application
Fan/Blower
Insulation Class
B
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Belt Drive
Sub Application
General Purpose
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 6.2-6.2/3.1 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
