  9. 1/2 HP 1-1/2" F Submersible Sump Pump 120V AC Vertical

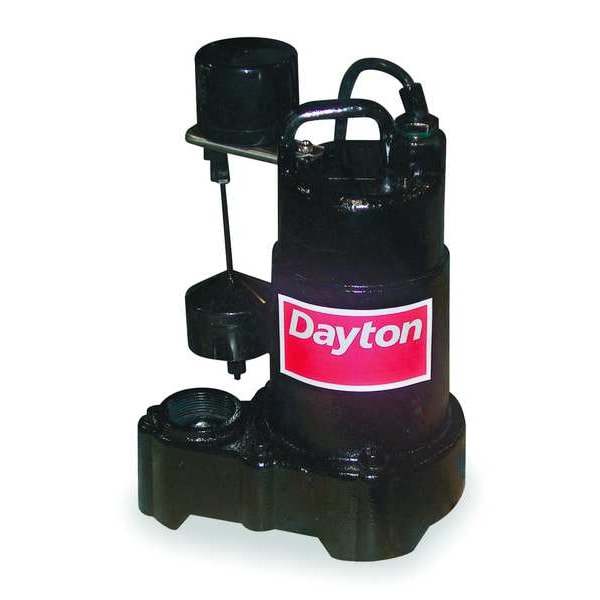

Dayton 1/2 HP 1-1/2" F Submersible Sump Pump 120V AC Vertical 3BB82 - main

1/2 HP 1-1/2" F Submersible Sump Pump 120V AC Vertical

  • Mfr # 3BB82

  • Zoro # G0592977

product price: $460.99
/ea
Free Shipping & Returns

Key Features

Cord Length
15 ft
Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1/2
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3BB82
Zoro #
G0592977
UPC #
190735280089
Country of Origin
China

Dimensions

Cord Length
15 ft
Height
12-1/4"
Max. Diameter Solids
1/2 in
Cord Length - Pumps
15 ft.
Max. Dia. Solids
1/2"
Diameter
9-1/8"
Body Dia.
9 1/8 in
Overall Height
12 1/4 in
Discharge Dia.
1 1/2 in
Discharge Diameter
1 1/2 in
Solids Diameter - Maximum
1/2 in
Body Diameter
9 1/8 in
Sump Pit Diameter - Minimum
12 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1/2
Hz
60 Hz
Impeller Material
Cast Iron
Max. Head
32 ft
Max. Temp.
104 Degrees F
Motor RPM
3450
Motor Type
Oil-Cooled
Shaft Seal
Silicon Carbide
Voltage
120V AC
Phase
Single
Item
Submersible Sump Pump
GPM of Water @ 30 Ft. of Head
20
Max. Liquid Temp.
104 Degrees F
Pump Body Material
Cast Iron
Base Material
Cast Iron
GPM of Water @ 5 Ft. of Head
80
Alarm Included
No
NEC Cord Designation
SJTOW
Item - Sump Pumps
Submersible Sump Pump
Shaft Seal Material - Pumps
Carbon Ceramic
Switch Type
Vertical
Amps - Pumps
9.80
Bearing Type
Upper and Lower Ball
Off Point
3 in
Voltage - Pumps
120VAC
Mechanical Seal
SiC
On Point
7 3/4 in
GPM of Water @ 10 Ft. of Head
70
GPM of Water @ 15 Ft. of Head
62
Switch Type - Pumps
Vertical
Max. Head - Pumps
32 ft.
GPM of Water @ 20 Ft. of Head
50
Alarm
No
Gauge/Conductor
18/3
Impeller Material - Pumps
Cast Iron
GPM of Water @ 25 Ft. of Head
40
Amps
9.8 A
Pump HP
1/2
Duty
Continuous
Flow Rate @ 20 Ft. of Head
50 gpm
Discharge
1 1/2 in FNPT
Flow Rate @ 5 Ft. of Head
80 gpm
Duty Cycle
Continuous
Switch Electrical Connection
Piggyback
Discharge Standard
NPT
Switch Actuation
Vertical Float
Discharge Gender
Female
Flow Rate @ 10 Ft. of Head
70 gpm
Flow Rate @ 15 Ft. of Head
62 gpm
Body Material
Cast Iron
Rated Voltage
120V AC
Shaft Seal Type
Single Mechanical
Includes Alarm
No Alarm Included
Liquid Temperature - Maximum
104 Degrees F
Volute Material
Cast Iron
Current
9.8 A
Shaft Seal Material
Carbon/Ceramic
Horsepower
1/2 hp
Flow Rate @ 10 ft of Head
70 gpm
Frequency
60 Hz
Motor Housing Material
Cast Iron
For Media Type
Clear Water, Trash Water
Impeller Design
Vortex
Hazardous Location Class
Not Rated
Feet of Head - Maximum
32 ft
Power Source
Corded Electric

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 120V AC, Hz 60 Hz, Amps 9.8 A, Switch Actuation Vertical Float, Switch Electrical Connection Piggyback, Off Point 3 in, On Point 7 3/4 in, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon Ceramic, Flow Rate @ 5 Ft. of Head 80 gpm, Flow Rate @ 10 Ft. of Head 70 gpm, Flow Rate @ 15 Ft. of Head 62 gpm, Flow Rate @ 20 Ft. of Head 50 gpm, Max. Head 32 ft, Body Dia. 9 1/8 in, Overall Height 12 1/4 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
